Automatic Flight -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
4.10.14 D615Z003-TBC
The ATC uplink function for altitude is always enabled. For immediate clearances,
pushing the datalink ACCEPT switch displays the clearance altitude value in the
lower line of the window. Pushing the transfer (XFR) switch transfers the value
from the lower line to the upper line. Pushing the datalink CNCL switch removes
the clearance from the lower line.
For conditional clearances, pushing the ACCEPT switch displays the new altitude
value automatically in the lower line only after the clearance condition is met.
Uplinked clearances are preceded by the letters "UL".
Autopilot Flight Director Approach Mode Controls
Push –
• arms, disarms, engages, or disengages localizer (LOC) or final approach
course (FAC) as the roll mode
• displays LOC or FAC in white (armed) on the PFD and in green on the
HUD roll flight mode annunciator before localizer or course capture
• displays LOC in green (engaged) on the PFD and in green on the HUD roll
flight mode annunciator after localizer or course capture
• arms the AFDS to capture and track inbound on the front course or IAN
final approach course
• the capture point varies based on range and intercept angle
• capture can occur when an intercept track angle is within 120º of the
localizer or final approach course
7
ATC Uplinked Altitude
1
Localizer / Final Approach Course (LOC/FAC) Switch
A/P
F/D
ON
HOLD
ALTITUDE
LOC/FAC
AUTO 1000
APP
OFF
XFR
17000
12000
UL

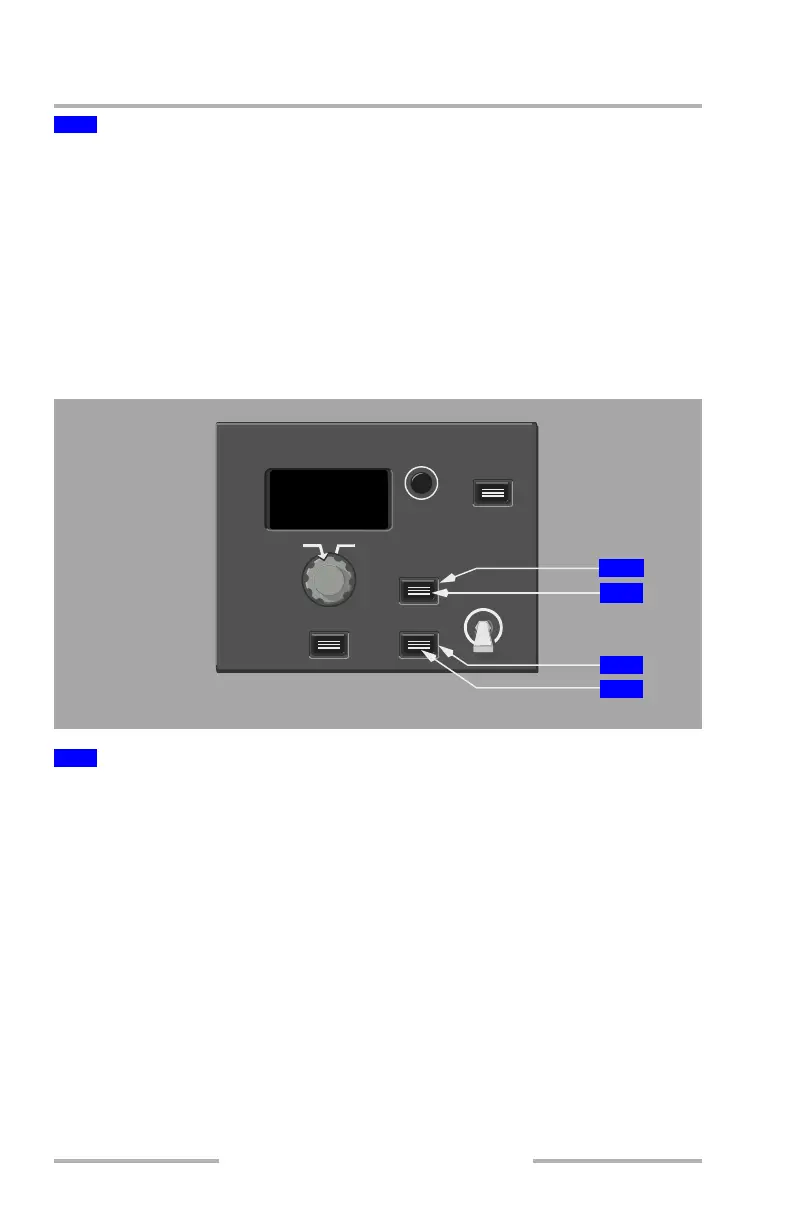

MODE CONTROL PANEL
4
3
1
2
