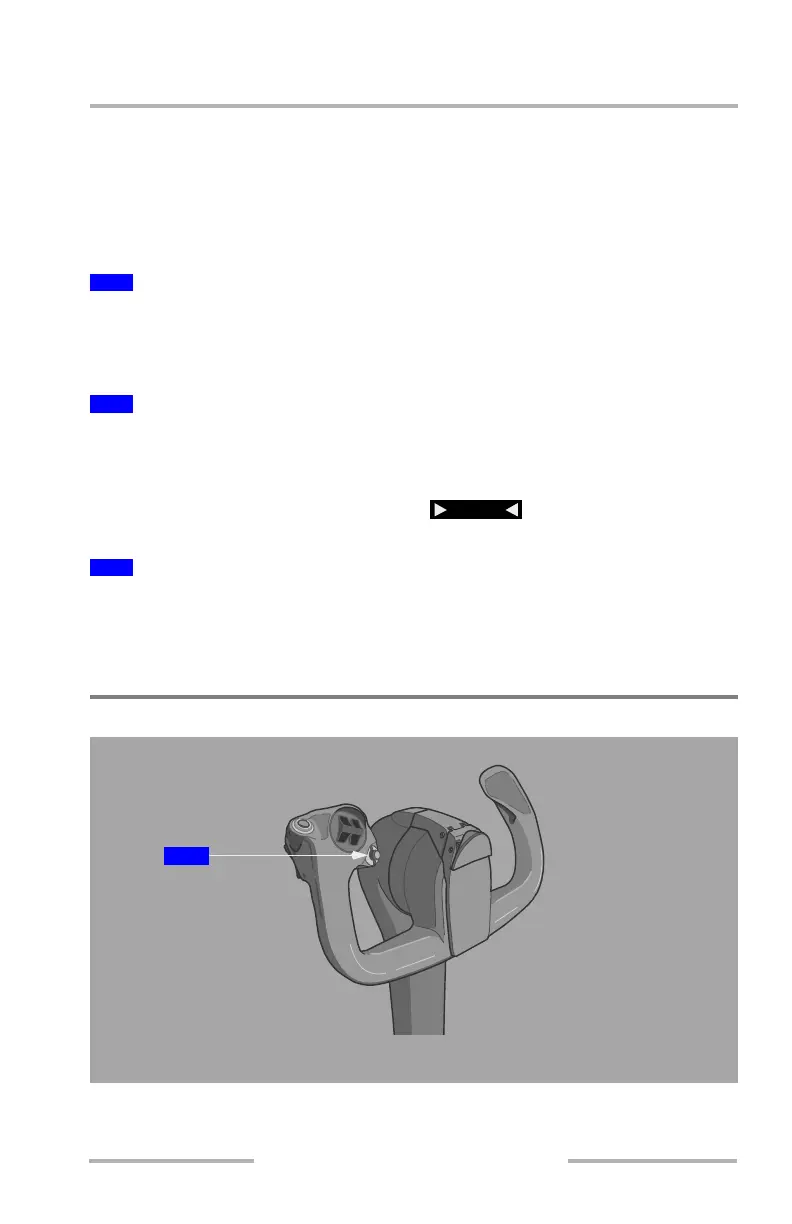

Automatic Flight -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 4.10.17
Displayed (green on HUD, white on PFD) –
Displayed (green) –
Displayed (green on HUD, white on PFD) –
Autopilot Disconnect Switch
• TO/GA
• ALT
• V/S
• VNAV PTH
• VNAV SPD
• VNAV ALT
• G/S
• FLARE
• FLCH SPD
• FPA
• G/P
4
AFDS Roll Modes (Armed)
• LOC
• ROLLOUT
• LNAV
• FAC
5
Autoflight Status Annunciation
• FLT DIR
• A/P
• LAND 3
Displayed (green with white triangles) –
Displayed (green on HUD, amber on PFD) – NO AUTOLAND.
6
AFDS Pitch Modes (Armed)
• G/S
• FLARE
• VNAV
LAND2
CONTROL WHEEL
1
