Communications -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 5.10.3
Selects the approach receiver to be monitored:
• APP L – left ILS/GLS and DME
• APP R – right ILS/GLS and DME
• MKR – marker beacon
Filters VOR, ADF, ILS, or DME audio:
• V (voice) – only the voice audio is heard
• B (both) – both the voice and range audio are heard
• R (range) – range audio (navigation aid Morse code identifier) is heard
Note: Marker beacon audio is available in all positions.
Radio System

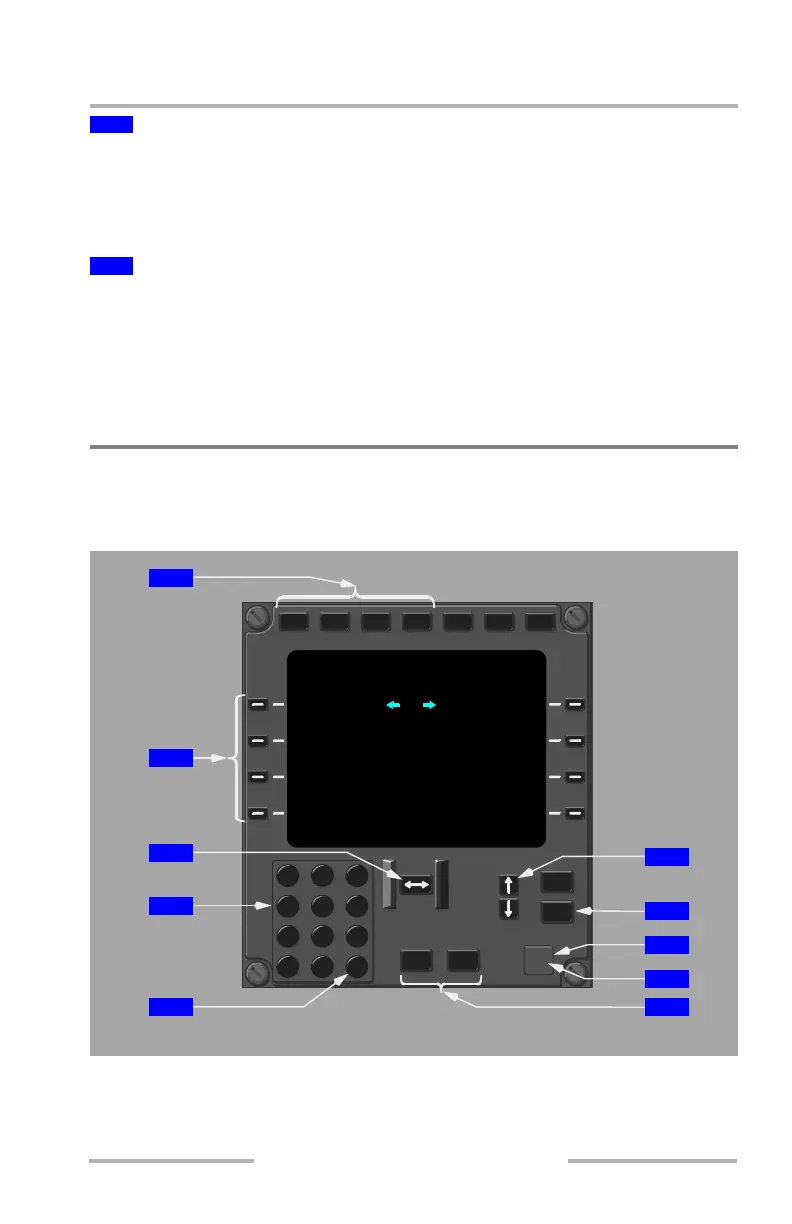

Tuning and Control Panel
[Option – Active entry, Store active]
10
Approach (APP) Receiver Selector
11
Navigation Filter Selector
STBY
PANEL OFF
XFR
S
T
E
P
MENU
NAV
NEXT
PAGE
PREV
PAGE
CLR
0
.
987
654
32
1
XPDRWXRGPWSCABSATHFVHF
OFF
XXXXXXXXVHFXXXXXXXX
1/4
XX
18.000X
L
XX122.750>1<
CTIVEXXXXXXSTBY-13/24XAX
XXXXXXXXXXXXXXXXXXXXXXXX
ATAXXXX--C--XX125.000>D<
XXXXXXXXXXXXXXXXXXXXXXXX
18.525X --R--XX123.000>1<
XXXXXXXXXXXXXXXXXXXXXXXX
TOREX ACTIVEXXXXXXXXXXXS<
XXXXXXXXXXXXXXXXXXXXXXXX
AFT AISLE STAND PANEL
2
1
4
6
5
7
3
10
8
9
