787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Communications -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 5.10.5
• SATCOM SYStem selection
• MISC RADIO
Push – removes associated TCP display and processor power.
Illuminated – associated TCP is off.
PREV PAGE – displays previous page of multiple page displays.
NEXT PAGE – displays next page of multiple page displays.

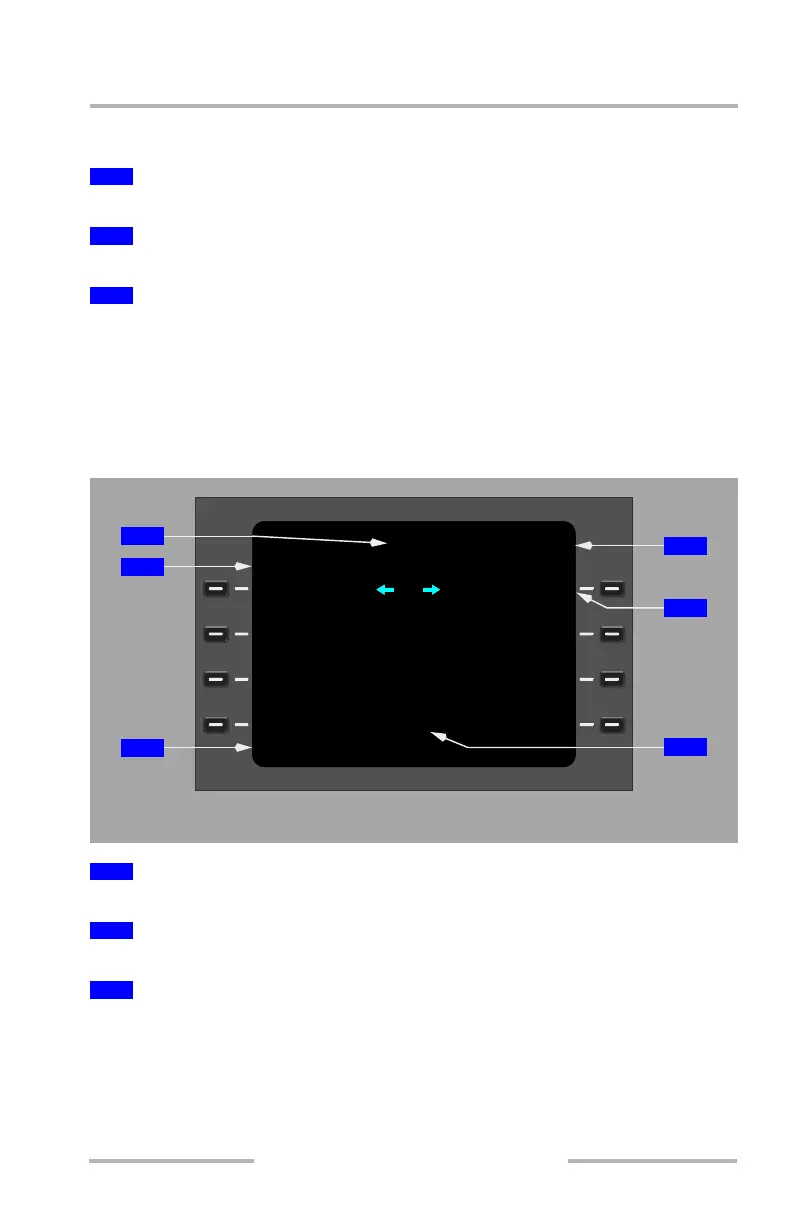

TCP Page Components
VHF Operation
[Option – Active entry, Store active]
Displays selected mode for data displayed on page.
Displays title of data on line below.
Displays –
• numeric entries from keypad
• line selected data
• system messages
• frequencies preceded by UL indicate an uplink
8
Tuning & Control Panel OFF Switch
9
Tuning & Control Panel OFF Light
10
Previous (PREV) / NEXT PAGE Keys
1
Page Title
2
Line Title
3
Scratchpad
TUNING AND CONTROL PANEL
3
2
1
4
5
6
XXXXXXXXVHFXXXXXXXX1/2XX
18.000X L XX122.750>1<
CTIVEXXXXXXXXXXXXSTBYXAX
XXXXXXXXXXXXXXXXXXXXXXXX
ATAXXXX--C--XX125.000>D<
XXXXXXXXXXXXXXXXXXXXXXXX
18.525X --R--XX123.000>1<
XXXXXXXXXXXXXXXXXXXXXXXX
TOREX ACTIVEXXXXXXXXXXXS<
8.500XXXXXXXXXXXXXXXXX21
June 16, 2008
