787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Communications -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 5.10.7
Indicates that a new frequency can be added to the stored list. Up to 8 frequencies
are stored on each page.
[Option – HF radios]
HF Operation
[Option – Active entry, USB/AM]
Operation of HF radio selection and usage is identical to VHF radio operation.
Push – UP
• increases HF sensitivity in increments up to 100 or full volume
• holding key down slews sensitivity up to desired volume
Push – DOWN
• decreases HF sensitivity in increments down to 0 or minimum volume
• holding key down slews sensitivity down to desired volume
[Option – USB/AM]
Push – Toggles between upper side band (USB) and amplitude modulation (AM)
modes.
3
Dash Prompts
1
Dual HF Radios
2
HF Sensitivity Keys
3
HF USB/AM Key

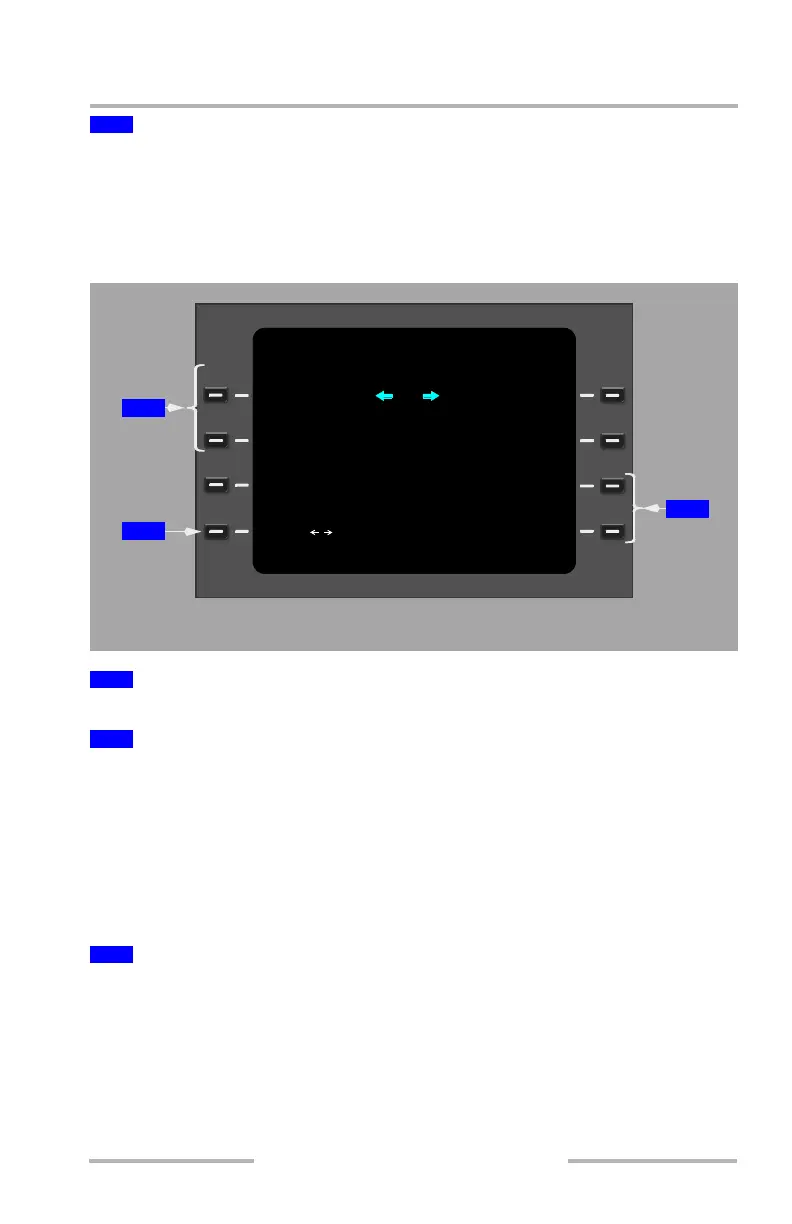

TUNING AND CONTROL PANEL
XXXXXXXX
HF
XXXXXXXX
1/3
XX
1.167 X
L
XX 10.048>1<
CTIVEXXXXXXXXXXXXSTBYXAX
XXXXXXXXXXXXXXXXXXXXXXXX
ATAXXXX--R--XX 5.667>D<
XXXXXXXXXXXXXX
HF
X
SENS
XXX
18.525X--R--XX UP>1<
F MODEXXXXXXXXXXXXXXXXHX
SB AMXXXXXXXXXXXDOWN>U<
8.500XXXXXXXXXXXXXXXXX21
001
1
3
2
June 16, 2008
