787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Communications -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
5.10.8 D615Z003-TBC
[Option – SATCOM]
SATCOM Operation
SATCOM Main Menu

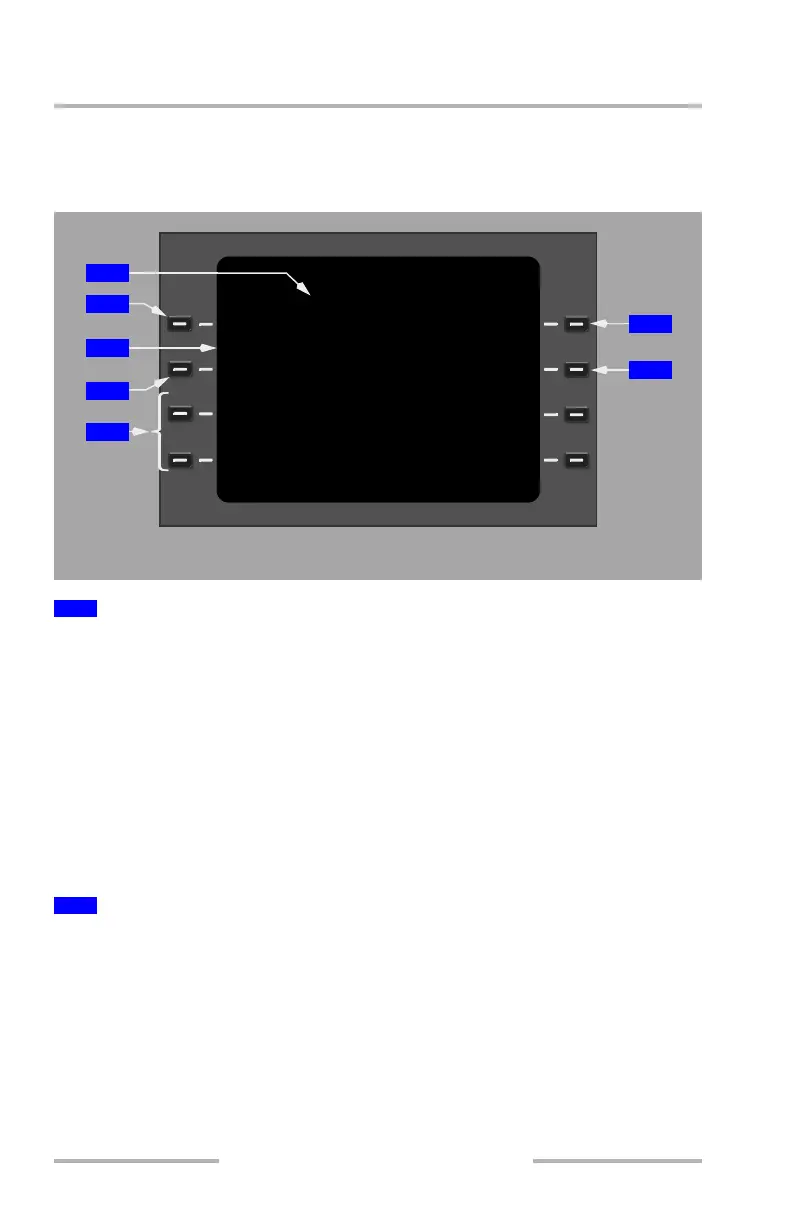

Displays associated SATCOM channel (-1 or -2) status:
• READY – system ready to make call
• CABIN USE – system in use by cabin attendants
• DIALING – system is dialing or placing the call
• RINGING – call is ringing and waiting for ground station to answer
• ANSWERED – call has been picked up by ground station
• CALL FAIL – call failed to be received
• NOT READY – system is not ready to make a call
• GND CALL – there is an incoming call
• IN QUEUE – an incoming call has been placed in SATCOM queue
Push – MAKE CALL
• initiates a SATCOM call to the identifier / number listed below call key
• once call is in progress, prompt returns to END CALL
Push – END CALL
• cancels the current call
• prompt returns to MAKE CALL
1
SATCOM Channel Status
2
SATCOM CALL Key
TUNING AND CONTROL PANEL
XXXXXSS
STOM
ONEXXX
1/2
XX
AKELCAL
L
XX122.HGH>M<
T-1:READYXXXXXPRIORITYAS
OAX CTRXXXXXXXXXXXXXXXXZK
ATAXXXX--C--DIRECTORY>D<
T-2:READYXXXXXPRIORITYAS
AKE5 CALL-R--XX123.LOW>M
<
IGHTX OPERATIONSXXXXXXXLF
XXXXXXXXXXXX
SAT
X
RADIO>
XX
L
AC
6
7
3
5
4
2
1
February 13, 2009
