Communication Indications
(Refer to Auxiliary (AUX) Display in Chapter 10, Section 10, for additional
information.)
Displays (white) –
[Option – HF radios]
• selected onside radio VHF or HF mic source frequency
• onside radio ACP selected mic source
• VHF L, C, or R when a VHF switch is selected
• FLT when the FLT switch is selected
• CAB when the CAB switch is selected
[Option – Dual HF radios]
• HF L or HF R when a HF switch is selected
[Option – SATCOM radio]
• SAT 1 or SAT 2 when a SAT switch is selected
• DATA when onside radio is used for datalink operation
Displays (green) –
[Option – HF radios]
• keyed onside radio VHF or HF mic source frequency
• onside radio ACP selected mic source
• when (above listed) mic source is keyed
• PA when the PA mic switch is pushed
• FLT when the control wheel MIC/INT switch is selected to INT
• DATA when onside radio is transmitting/receiving datalink information
1

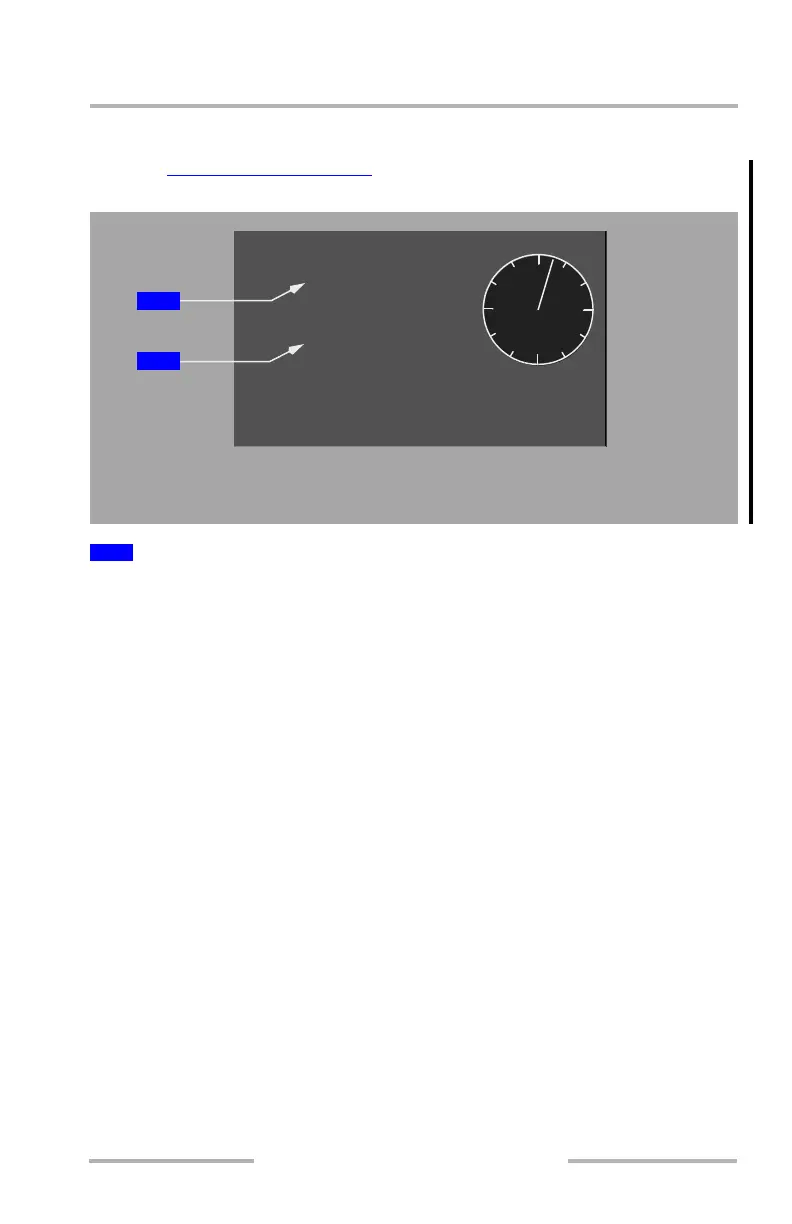

MIC (microphone) Indicator Display
00:02
01:45
VHF L
NCC1701E
BOE1
787FLTBOE1
118.00
3777
28 FEB 0615:21:08z
MIC
FLT #
ELAPSED TIMEDATEUTC TIME
TAIL #
XPDR
SELCAL
FLIGHT DATA BLOCK
2
1
(Typical)
February 15, 2010
