787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
10.10.60 D615Z003-TBC
Auxiliary (AUX) Display
For additional information, refer to:
•MIC and SELCAL (Communication Indications
, Ch. 5, Sec. 10)
•TAIL # (EFB IDENT Page
, Ch. 10, Sec. 70)
• FLT # and XPDR (Flight Data Block
, Ch. 11, Sec. 10)
• Date and time functions (Clock
, Ch. 10, Sec. 10)
(Refer to Uplink Message
in Chapter 5, Section 40, for additional information.)

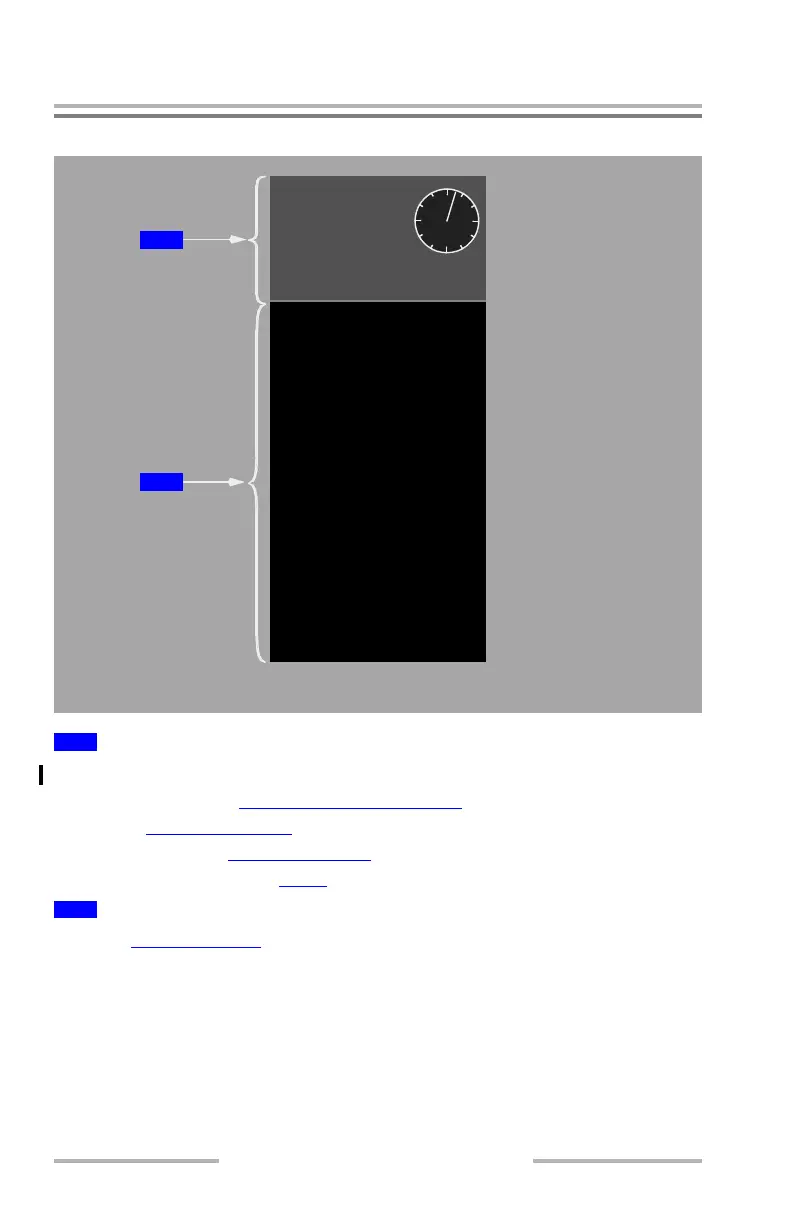

1
Flight Data Block
2
ATC Message Block
00:02
01:45
VHF L
NCC1701E
BOE1
787FLTBOE1
118.00
3777
28 FEB 0615:21:08z
MIC
FLT #
ELAPSED TIMEDATEUTC TIME
TAIL #
XPDR
SELCAL
OUTBOARD DISPLAY UNITS
2
1
February 15, 2010
