787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.10.59

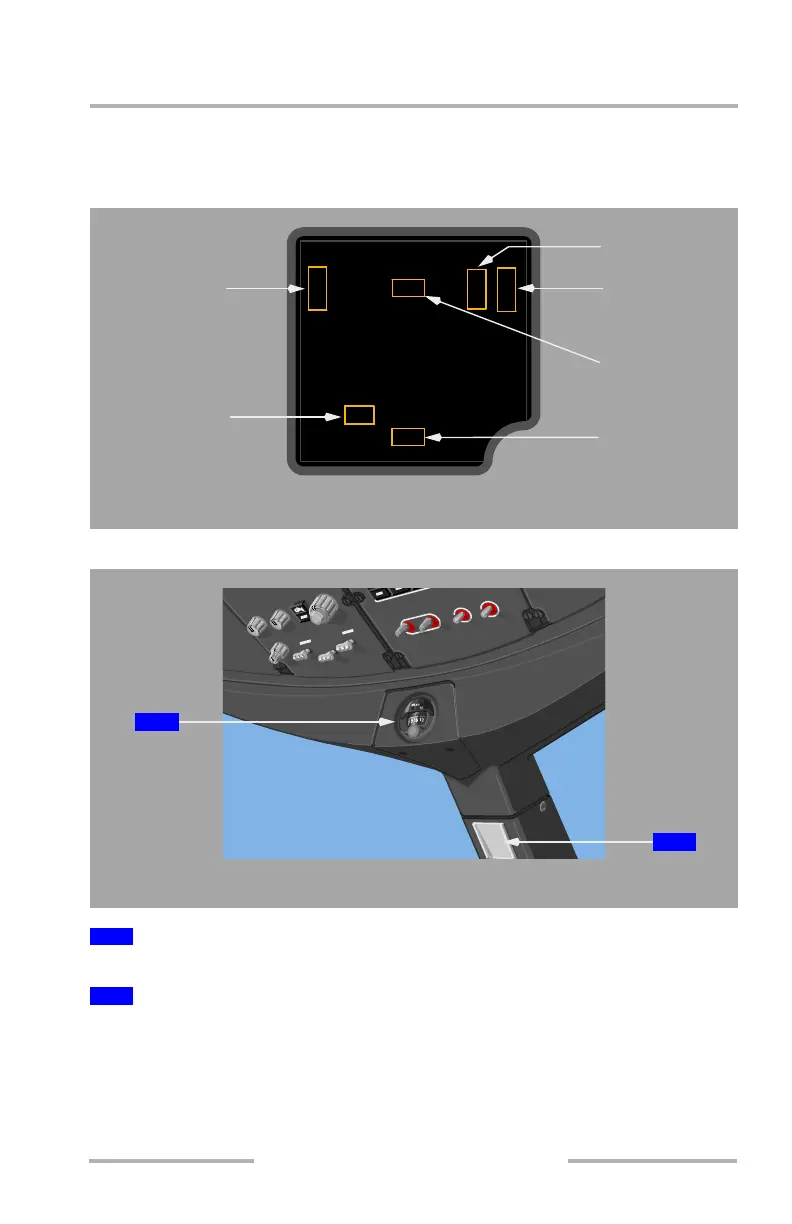

ISFD Failure Flags
Failure flag replaces appropriate display.
OUT OF ORDER indicates instrument system failure.
Standby Magnetic Compass
Displays magnetic heading.
Provides appropriate heading corrections.
1
Standby Magnetic Compass
2
Standby Magnetic Compass Correction Card
ATT
LOC
HDG
A
L
T
S
P
D
G
/
S
OUT OF ORDER
INTEGRATED STANDBY FLIGHT DISPLAY
Airspeed
Localizer
Glideslope
Altitude
Attitude
Heading
CENTER POST ABOVE GLARESHIELD
1
2
