Circuit Breaker Indication and Control (CBIC)
CBIC provides indication and control for Electronic Circuit Breakers (ECB), and
indication only for Thermal Circuit Breakers (TCB). CBIC is shown on the
multifunction display by pushing the systems (SYS) display switch on the display
select panel, then selecting the CB key. (Refer to Display Select Panel
in Chapter
10, Section 10, for additional information.)
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
DATA CTRL
CB BY
LOCATION
FLIGHT
DECK CB
OPEN /
TRIP CB
CB BY
STATE
CB
SEARCH
RECENT
USED CB
CB CUSTOM
LIST
SPLY FAN-F/D EQPT
CLG MC
LOW FLOW DET-FWD
EQPT CLG 1 + 3
SPLY FAN-FWD EQPT
CLG L MC
VENT FAN-FWD EQPT
CLG MC
VENT FAN-FWD EQPT
CLG R MC
SMOKE OVRD VLV-F/D
EQPT CLG 1 OP
SMOKE OVRD VLV-F/D
EQPT CLG 1 CL
SMOKE OVRD VLV-F/D
EQPT CLG 2 OP
SMOKE OVRD VLV-F/D
EQPT CLG 2 CL
SMOKE DET-FWD EQPT
CLG 1
OVBD VLV-FWD EQPT
CLG OP
FAN-MISC CLG MC
CE2127811
CE2127809
CE2127802
CE2127816
CE2127804
CE2127856
CE2127857
CE2127858
CE2127859
CE2127817
CE2127821
CE2127838
OVBD VLV-FWD EQPT
CLG CL
CE2127822
INOP
DO NOT
CLOSE
21-27 EE COOLING SYSTEM
21 AIR CONDITIONING...
TRIPPED
2
CB BY
ATA

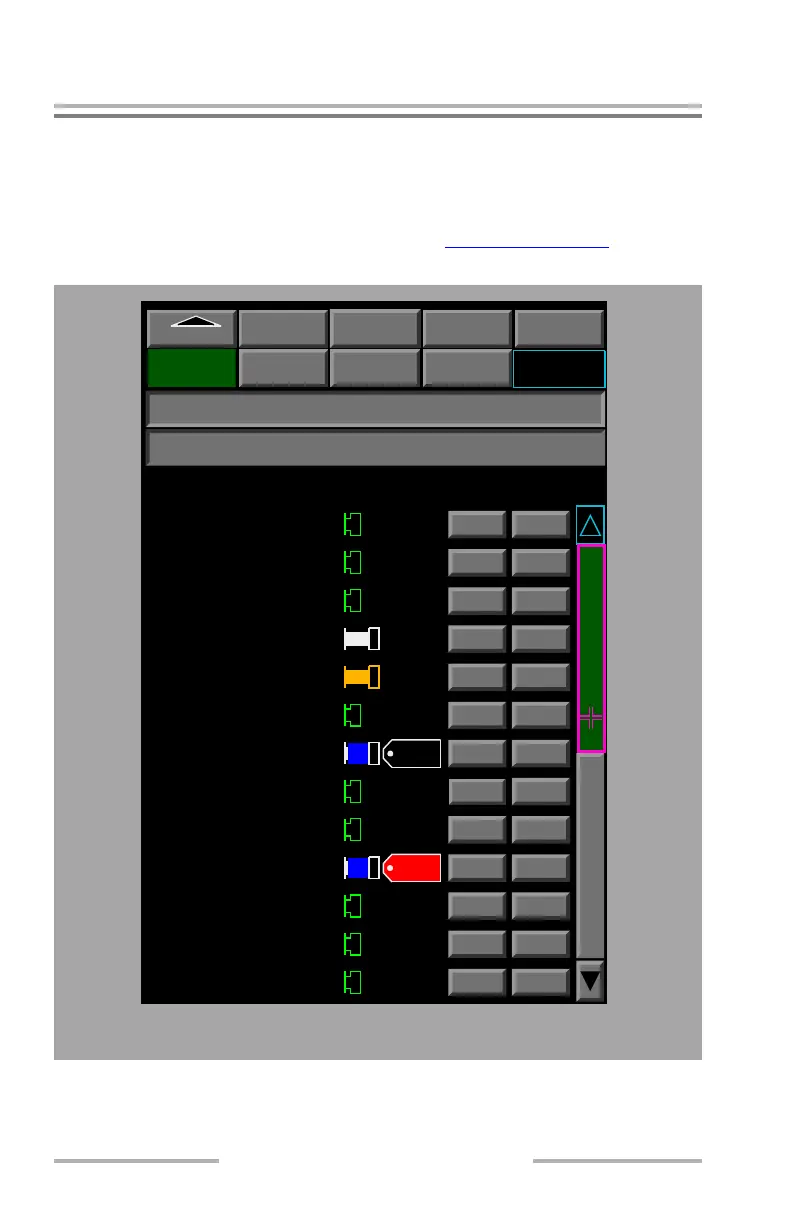

CBIC Display
