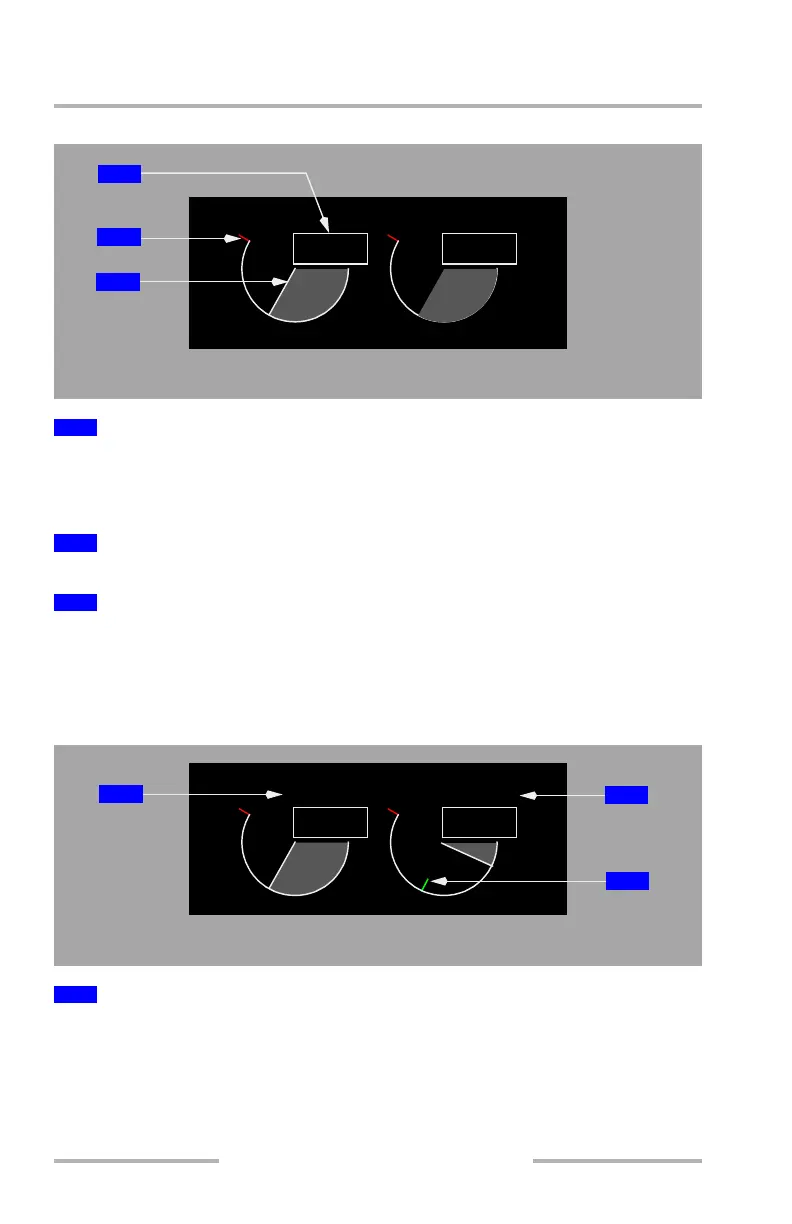

N2 Indications
N2 RPM (%), displayed:
• (white) – normal operating range
• (red) – operating limit reached
N2 RPM operating limit, displayed (red)
N2 RPM, displayed:
• (white) – normal operating range
• (red) – operating limit reached
Starting Mode and Idle Target Indication
Displayed (green) –
• fuel control switch is in the RUN position, and
• engine is at or above idle
The RUNNING indication blanks 30 seconds after engine reaches idle.
1
N2
2
N2 Red Line
3
N2 Indication
1
RUNNING Indication
2
N
.66 4.66 4
SECONDARY ENGINE DISPLAY
1
3
2
2
N
.10 8.66 4
AUTOSTART
RUNNING
SECONDARY ENGINE DISPLAY
2
1
3
