Oil Pressure Indications
Engine oil pressure (psi), displayed:
• (white) – normal operating range
• (amber) – caution range reached
• (red) – operating limit reached
[Option – GE engines]
Displayed (amber) – oil pressure caution range (displayed only on the ground
below 80 knots).
[Option – RR engines]
Displayed (amber) – oil pressure caution range.
Engine oil pressure, displayed:
• (white) – normal operating range
• (amber) – caution range reached
• (red) – operating limit reached
Displayed (red) – oil pressure operating limit.
Vertical position of oil pressure red line will vary with N2 RPM.
Oil Temperature Indications
[Option – GE engines]

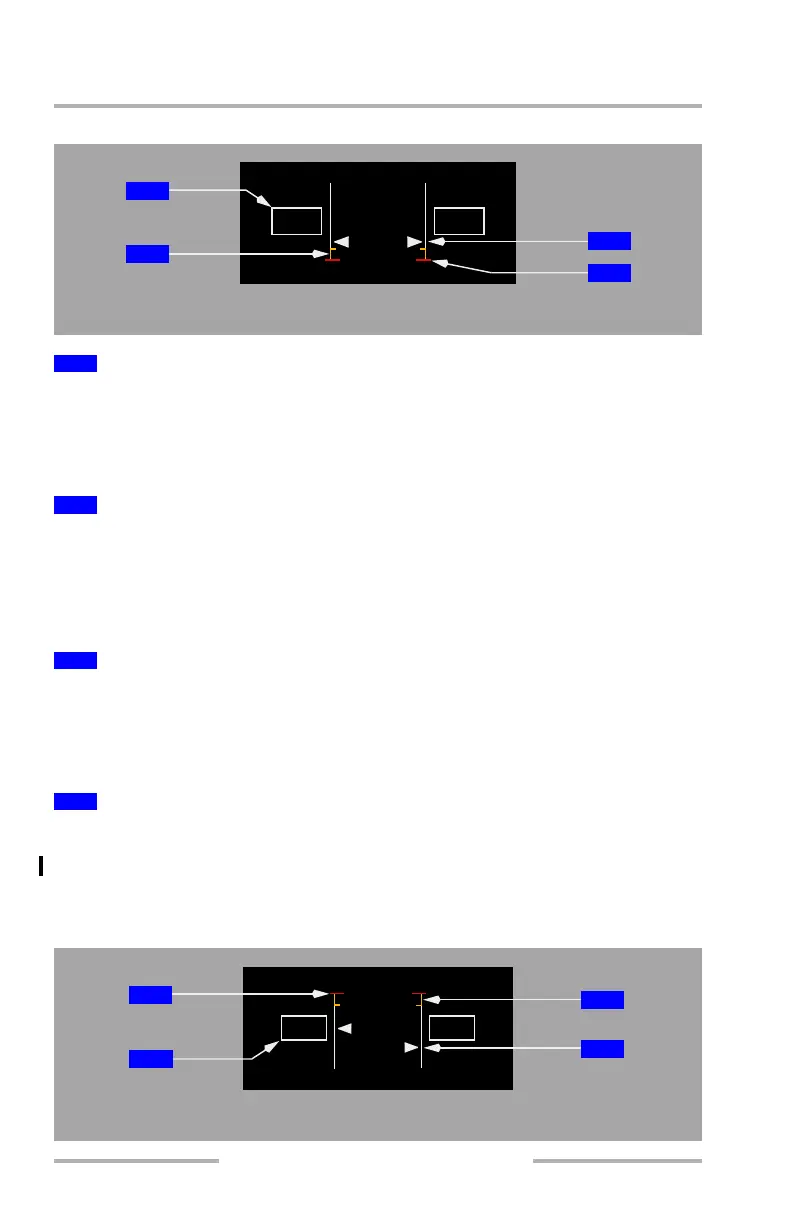

1
Oil Pressure
2
Oil Pressure Amber Band
3
Oil Pressure Pointer
4
Oil Pressure Red Line
PRESS
OIL
28 28
SECONDARY ENGINE DISPLAY
3
2
4
1
TEMP
OIL
86106
SECONDARY ENGINE DISPLAY
1
3
4
2
