[Option – RR engines]
Displayed (red) – oil temperature operating limit.
Engine oil temperature (ºC), displayed:
• (white) – normal operating range
• (amber) – caution range reached
• (red) – operating limit reached
Displayed (amber) – oil temperature caution range.
Engine oil temperature, displayed:
• (white) – normal operating range
• (amber) – caution range reached
• (red) – operating limit reached
Oil Quantity Indications
[Option – English / Metric units]
Usable oil quantity (quarts / liters).
Displayed:
• (white) – normal quantity
• (black numbers on white background) – low quantity
Note: LO – displayed (white) when quantity is low.
1
Oil Temperature Red Line
2
Oil Temperature
3
Oil Temperature Amber Band
4
Oil Temperature Pointer
1
Oil Quantity
TEMP
OIL
186
106

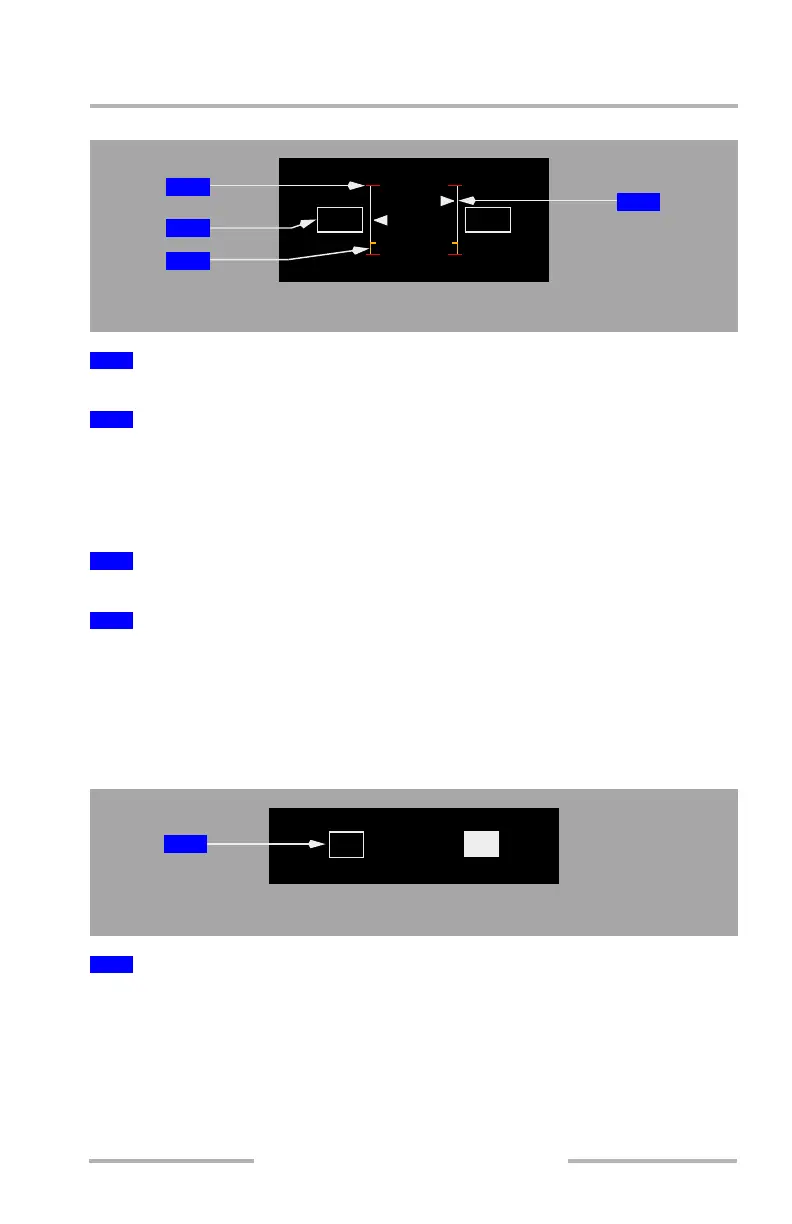

SECONDARY ENGINE DISPLAY
1
4
3
2
LO
OIL QTY
220
SECONDARY ENGINE DISPLAY
1
