Engine Fire Protection

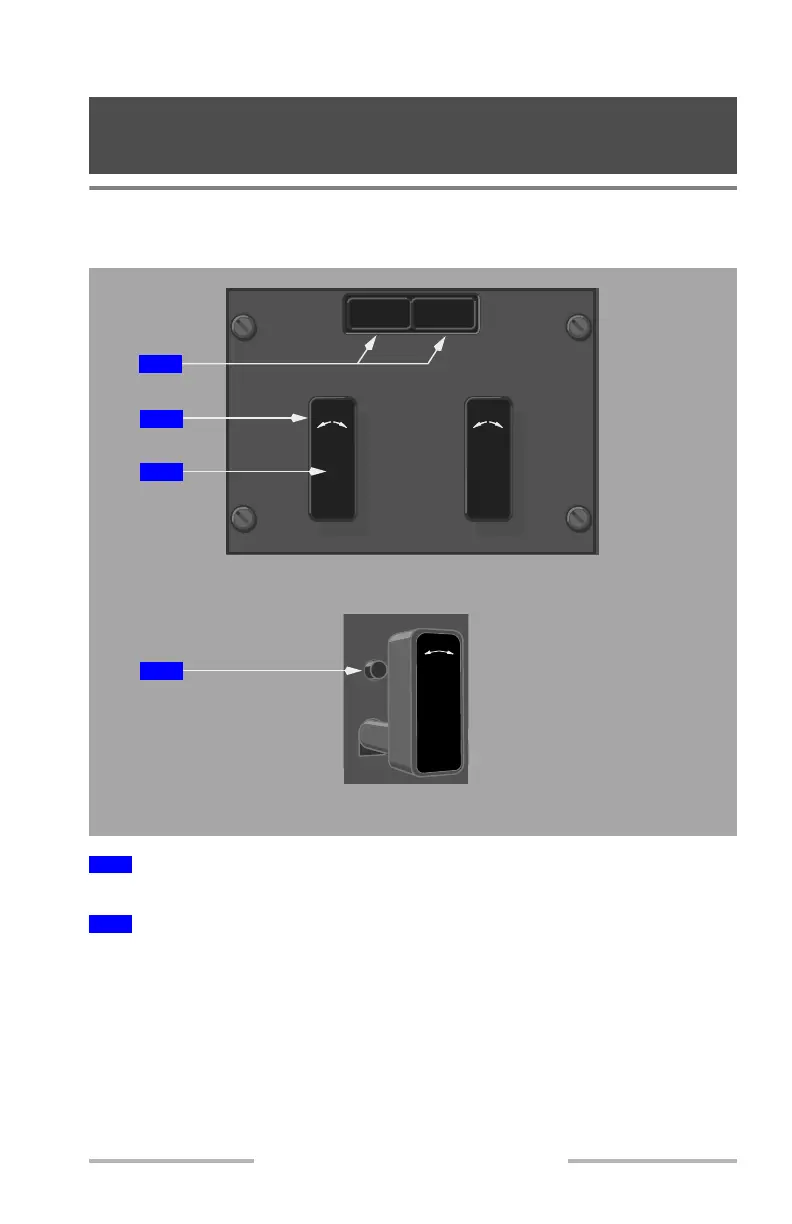

Engine Fire Panel
Illuminated (amber) – the extinguisher bottle is discharged or has low pressure.
In (normal position, mechanically locked) – unlocks automatically for a fire
warning, or when the FUEL CONTROL switch is in CUTOFF.
Out –
• arms both engine fire extinguishers
• closes the associated engine and spar fuel valves
• closes the associated engine anti-ice valves
• trips the associated engine generators off
1
Engine Bottle Discharged (ENG BTL DISCH) Lights
2
Engine Fire Switches
DISCH
L
E
F
T
12
R
I
G
H
T
DISCH
12
ENG BTL
1 DISCH
ENG BTL
2 DISCH
