787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Fire Protection -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
8.10.2 D615Z003-TBC
• shuts off hydraulic fluid to the associated engine–driven hydraulic pump
• depressurizes the associated engine–driven hydraulic pump
• removes power to the thrust reverser isolation valve
Rotate to position 1 or 2 – discharges the selected fire extinguisher into the engine.
Illuminated (red) –
• an engine fire is detected, or
• the FIRE/OVERHEAT TEST switch is pushed
Push – unlocks the fire switch.
Fuel Control Switches
Illuminated (red) –
• an associated engine fire is detected, or
• the FIRE/OVERHEAT TEST switch is pushed
3
Engine Fire Warning Lights
4
Engine and APU Fire Override Switches
1

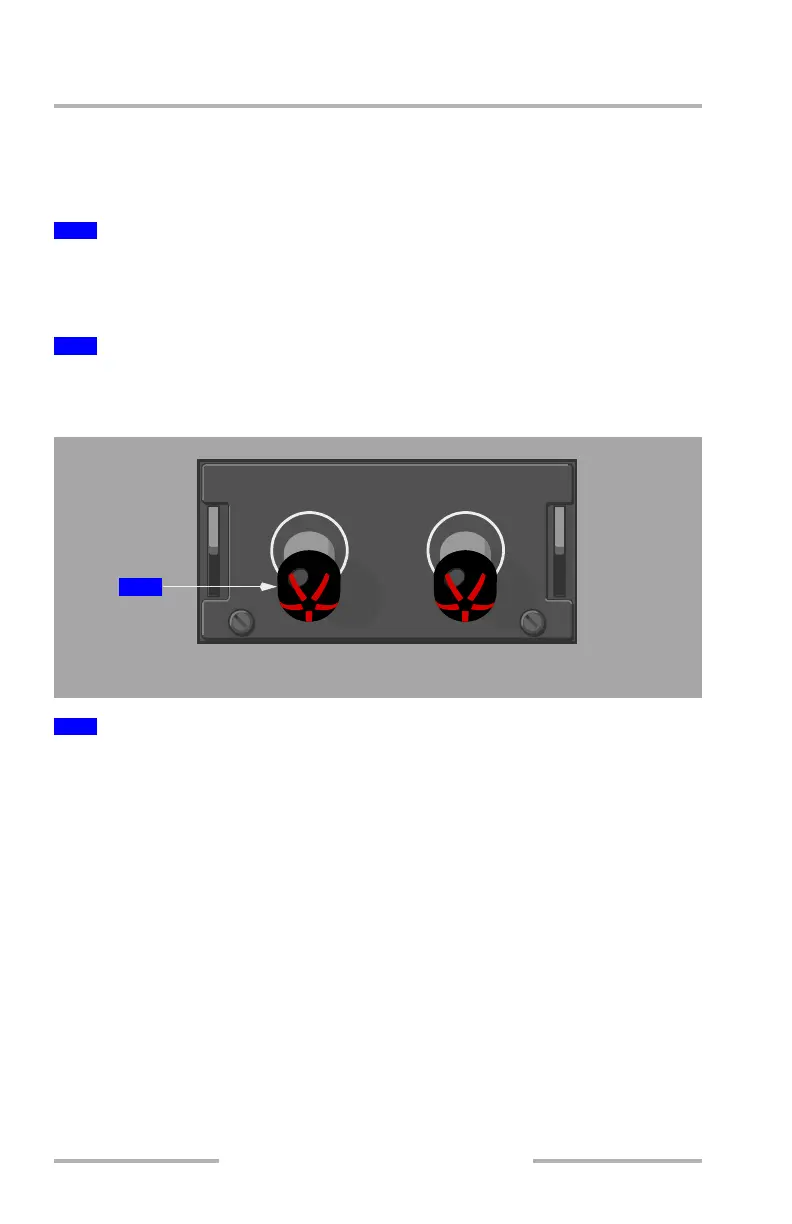

FUEL CONTROL Switch Fire Warning Lights
CONTROL STAND
L FUEL CONTROL R
RUN
CUTOFF
1
