Fire Protection -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 8.10.5

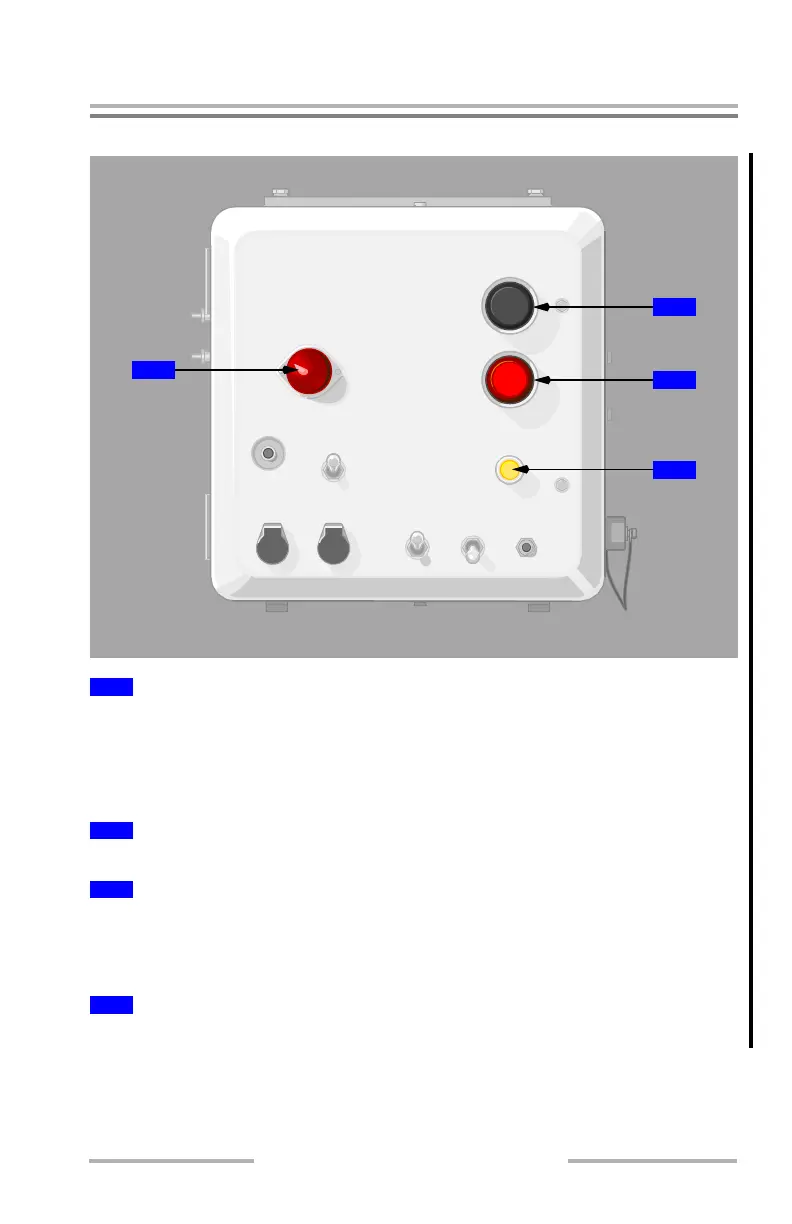

APU Ground Control Fire Protection Panel
Illuminated (red) –
• an APU fire is detected, or
• a fire/overheat test is in progress
The APU automatically shuts down for a detected fire.
Push – discharges the APU fire extinguisher into the APU compartment.
Push (red) –
• shuts down the APU
• arms the APU fire extinguisher
Illuminated (amber) – the APU fire extinguisher is armed.
1
APU FIRE Light
2
APU BOTTLE DISCHARGE Switch
3
APU FIRE SHUTDOWN Switch
4
APU FIRE BOTTLE ARMED Light
NOSE WHEEL WELL
NWW
LIGHTS
ARM OFF
APU FIRE
APU BOTTLE
DISCHARGE
APU FIRE
SHUTDOWN
FLIGHT DECK
CALL SW
FIRE BOTTLE
ARMED
FLIGHT
INPH
SERVICE
INPH
OFF CLOSE
NLG DOOR
UNSAFE LIGHT
PRESS TO TEST
NLG DOORS
1
3
4
2
