787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
10.12.22 D615Z003-TBC
Symbol not displayed until first flap retraction.
If the indicated airspeed is faster than the selected speed, the Speed Error Tape
rises above the wing. Likewise, if the airspeed is slower than the selected speed,
the Speed Error Tape falls below the wing.

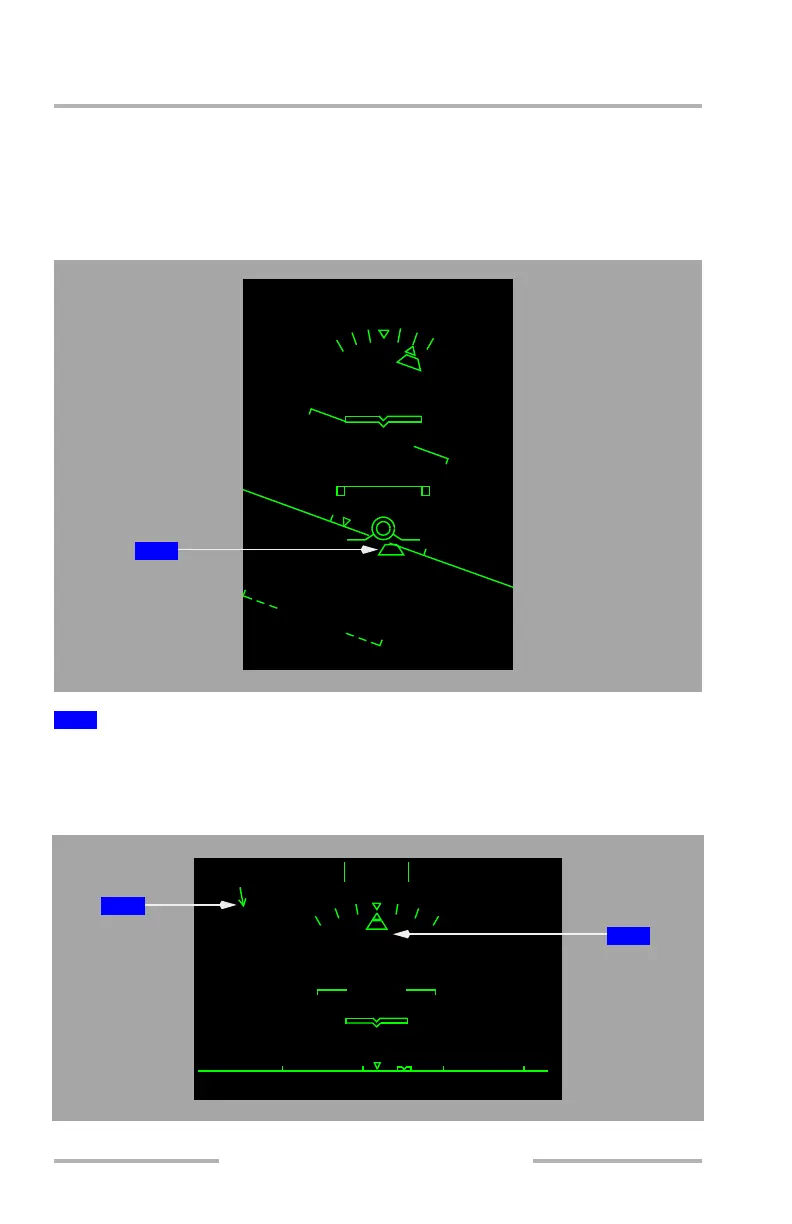

Slip/Skid Indication
Referenced to the flight path vector symbol. Only displayed during takeoff or low
altitude go-around to provide yaw reference in the event of engine failure.
Wind Speed, Wind Direction, and Digital Heading
1
Slip/Skid Indicator – Flight Path
FLT DIR
0
5
-
5
5
5
H051
1
05 06
HOLD LNAV FLCH SPD
55
H051
.
ITUC/161
FLT DIR
9
2
1
February 15, 2010
