787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Head-Up Display System -
Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.12.25
The Unusual Attitude (UA) symbology will remain displayed until:
• pitch angle is between -5º and 10º (relative to horizon) for 5 seconds, and
• roll angle is less than 10º for 5 seconds
Displayed in center of HUD pitch scale at +90º pitch line.
Displayed in center of HUD pitch scale at -90º pitch line.

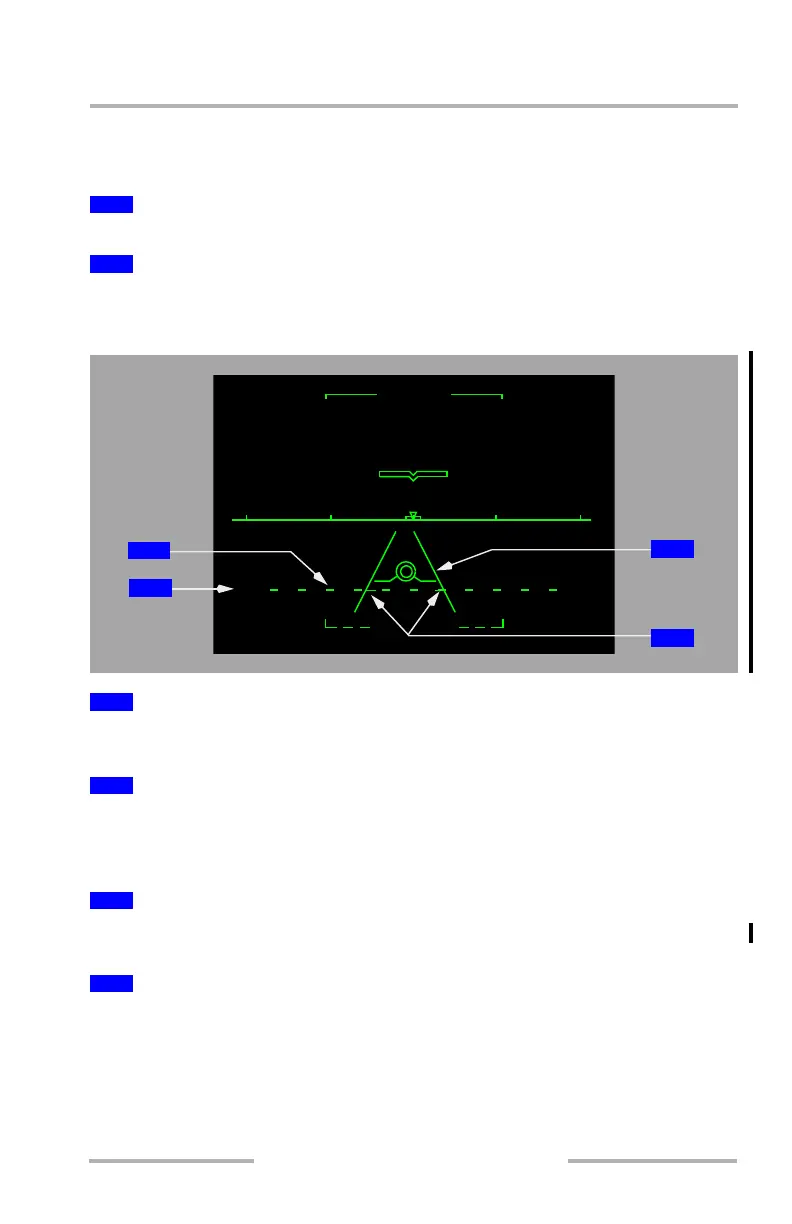

Runway Edge Lines and Glideslope Reference Line
Display of the glideslope or glidepath value for the active approach shown when
the VREF speed is selected. Removed from HUD at 70 feet RA.
Digital glideslope or glidepath angle for the active approach.
Default value is 3º if the selected approach has no glidepath angle or no approach
is selected.
Calculated position of runway edgelines. Displays only in decluttered mode.
Removed from HUD at 60 feet RA.
Tick marks on runway edge lines correspond to the touchdown aiming point.
2
Zenith Symbol
3
Nadir Symbol
1
Glideslope Reference Line
2
Digital Glideslope Value
3
Runway Symbol
4
Touchdown aiming point
36
01
35
-3.00-3.00
55
-5 -5
1
2
4
3
February 15, 2010
