Unusual Attitude
The Unusual Attitude (UA) symbology is displayed when:
• pitch is less than -20º, or
• pitch is greater than + 35º, or
• roll exceeds 55º in either direction
1

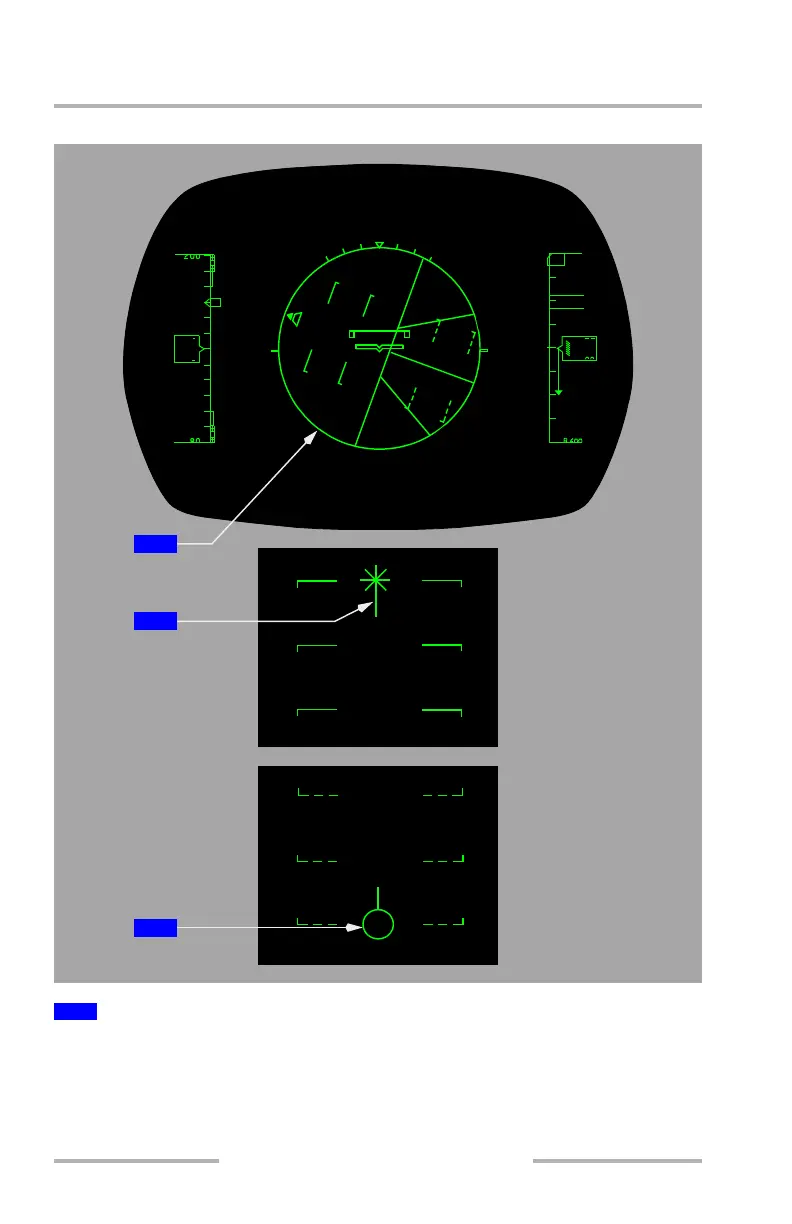

Unusual Attitude symbology
-
