787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.40.9

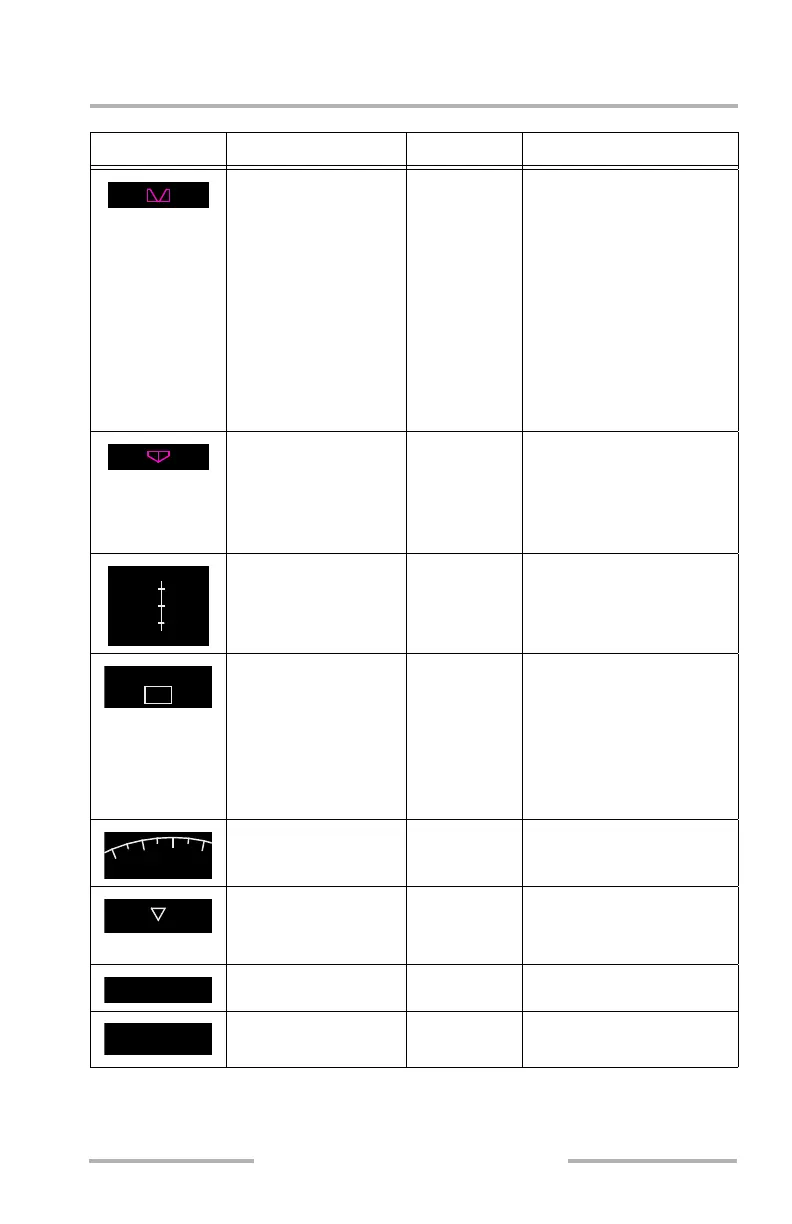

Symbol Name ND Mode Remarks
Selected heading bug
(M)
MAP, MAP
CTR,
mini-map
Displays the MCP–selected
heading. A dashed line (M)
may extend from the
marker to the airplane
symbol.
In the MAP mode with
LNAV, LOC, or
ROLLOUT engaged, the
dashed line is removed 10
seconds after the selected
heading bug is moved.
Selected track bug (M) MAP, MAP
CTR,
mini-map
Displays the MCP–selected
track. A dashed line (M)
may extend from the
marker to the airplane
symbol.
Track line and range
scale (W)
MAP, MAP
CTR,
mini-map
Indicates current track.
Number indicates range.
Heading/track
reference (G) box (W)
in TRU, box (A) if
TRU displayed in
descent
MAP, MAP
CTR,
mini-map
Indicates heading/track is
referenced to magnetic
north or true north.
Switching from TRU to
MAG displays a box
around MAG for 10
seconds.
Expanded compass
(W)
MAP Displays 90º of compass
rose.
Current heading
pointer (W)
MAP, MAP
CTR,
mini-map
Points to current heading
on the compass rose.
Ground speed (W) All Current ground speed.
True airspeed (W) All Current true airspeed
displayed above 100 knots.
40
MAG OR
TRU
15
12
310GS
TAS312
