787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
10.40.10 D615Z003-TBC
Radio Navigation
[Option – Dual ADF]

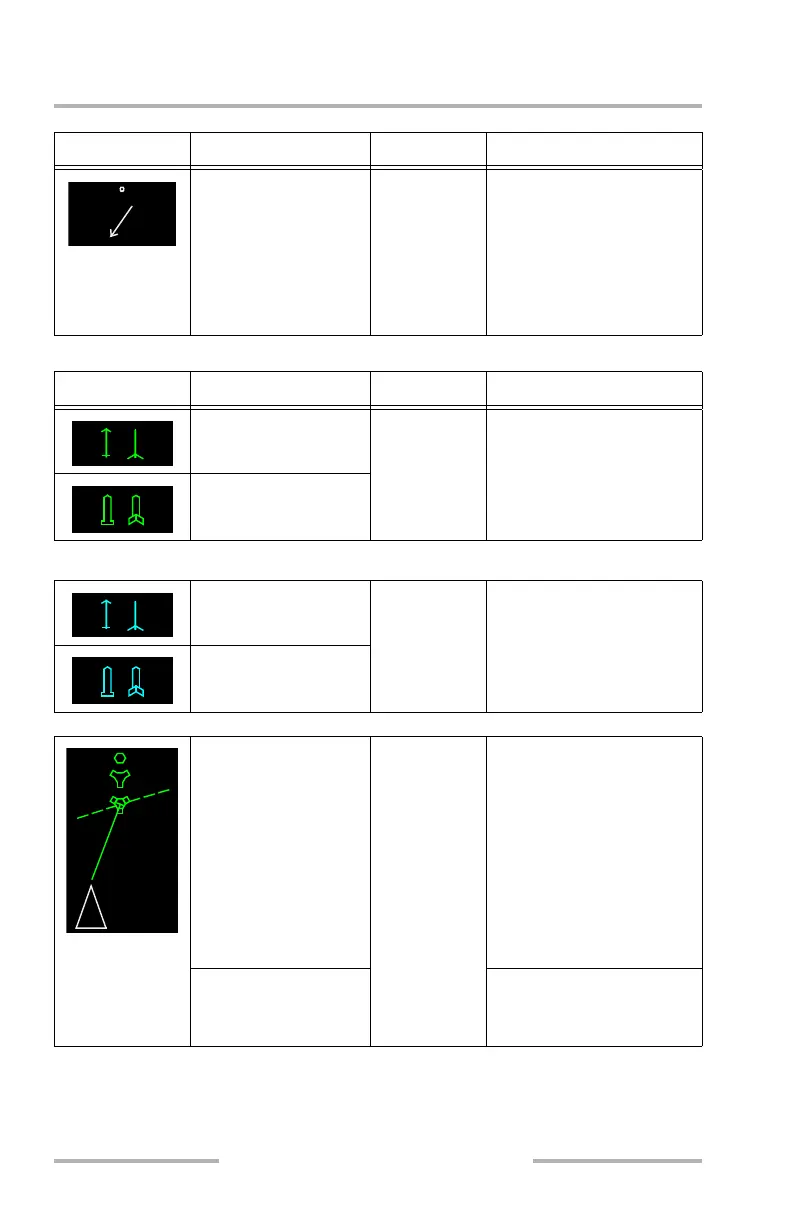

Symbol Name ND Mode Remarks
Wind direction/ speed
and wind arrow (W)
All Indicates wind bearing,
speed, and direction, with
respect to display
orientation and
heading/track reference.
Arrow not displayed in the
PLAN map mode.
Symbol Name ND Mode Remarks
Left VOR (G) pointer
head and tail
MAP, MAP
CTR
Indicates bearing to (head)
or from (tail) the tuned
station, if selected on the
respective MAP CTR
drop-down menu.
Right VOR (G)
pointer head and tail
Left ADF (C) pointer
head and tail
mini-map Indicates bearing to (head)
or from (tail) the tuned
station, if selected on the
respective MAP or MAP
CTR drop-down menu.
Right ADF (C) pointer
head and tail
VOR (C, G),
DME/TACAN (C, G),
VORTAC (C, G)
MAP, MAP
CTR, PLAN
When the STA key is
selected, appropriate
navaids are displayed (C).
Tuned VHF navaids are
displayed in green,
regardless of menu key
selection. When a navaid is
manually tuned, the
selected course and
reciprocal are displayed.
VOR/DME raw data
radial and distance (G)
When the POS key is
selected, the station radial
extends to the airplane.
350 /15
2
5
0
0
7
0
R
-
2
0
0
February 15, 2010
