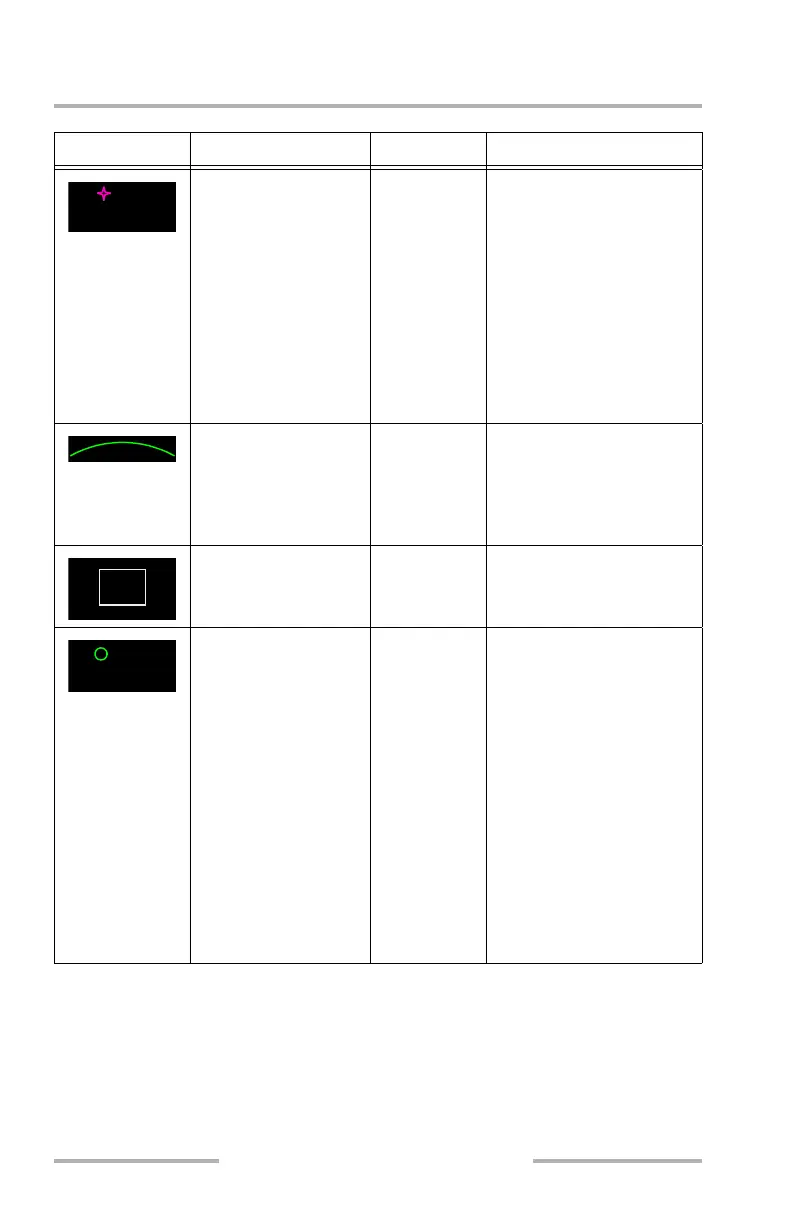

Symbol Name ND Mode Remarks
Route data: active
waypoint (M),
inactive waypoint (W)
MAP, MAP
CTR,
mini-map
When the DATA key is
selected, entered or
procedural altitude and
ETAs for route waypoints
are displayed. Times are
based on distance to go and
groundspeed. They do not
consider FMC performance
predictions and may differ
from other FMC ETAs that
do.
Altitude range arc (G) MAP, MAP
CTR,
mini-map
Based on vertical speed and
groundspeed, indicates the
approximate map position
where the MCP altitude
will be reached.
Range readout (W) MAP, MAP
CTR, PLAN
Shows the current selected
range.
Altitude profile point
and identifier (G)
MAP, MAP
CTR,
mini-map
Indicates the approximate
map position of the
FMC–calculated T/C
(top–of–climb), T/D (top–
of–descent), S/C (step
climb), and E/D (end of
descent) points.
Predicted altitude/ETA
points entered on the FIX
page display the
altitude/ETA along with the
profile point.
Deceleration points have no
identifier.
12000
KILMR
0835Z
40
RANGE
T/D
