787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.40.15

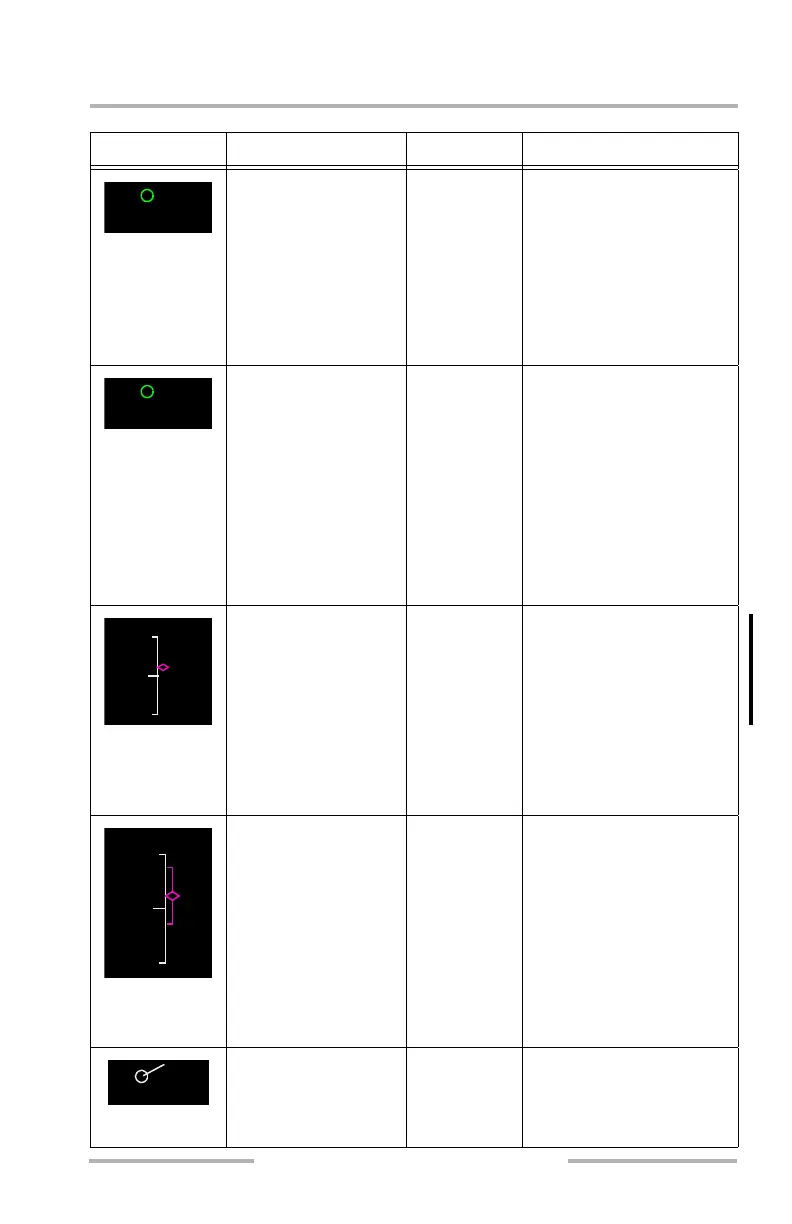

Symbol Name ND Mode Remarks
Speed profile point
and settings (G)
MAP, MAP
CTR,
mini-map
Indicates the approximate
map position for
FMC-calculated speed
settings.
Position and settings are
calculated to be on speed,
on path and on time at the
final approach fix.
Flap speed profile
point and settings (G)
MAP, MAP
CTR,
mini-map
Indicates the approximate
map position for
FMC-calculated flap and
speed settings. Flap setting
is indicated only for flaps 1,
5, and 20.
Position and settings are
calculated to be on speed,
on path and on time at the
final approach fix.
VNAV path pointer
(M) and deviation
scale (W)
MAP, MAP
CTR
Displays vertical deviation
from selected VNAV
PATH. Displayed only
during FMC descent phase
of flight. Scale indicates ±
400 feet deviation. Digital
display is provided when
the pointer indicates more
than ± 20 feet.
Path deviation band
(M), vertical path
deviation (W), vertical
ANP/RNP values (G)
MAP, MAP
CTR
Path deviation band is
symmetric about the
pointer and represents
vertical RNP. Whenever
ANP exceeds RNP, the
ANP/RNP labels and
values are displayed in
amber. Displayed only
during FMC descent phase
of flight.
Airport and runway
(W)
MAP, MAP
CTR, PLAN
Displayed when selected as
the origin or destination
and ND range is 80, 160,
320, or 640 NM.
190
F1
190
50
ANP
60
RNP
200
50
22L
KABC
