787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.40.23

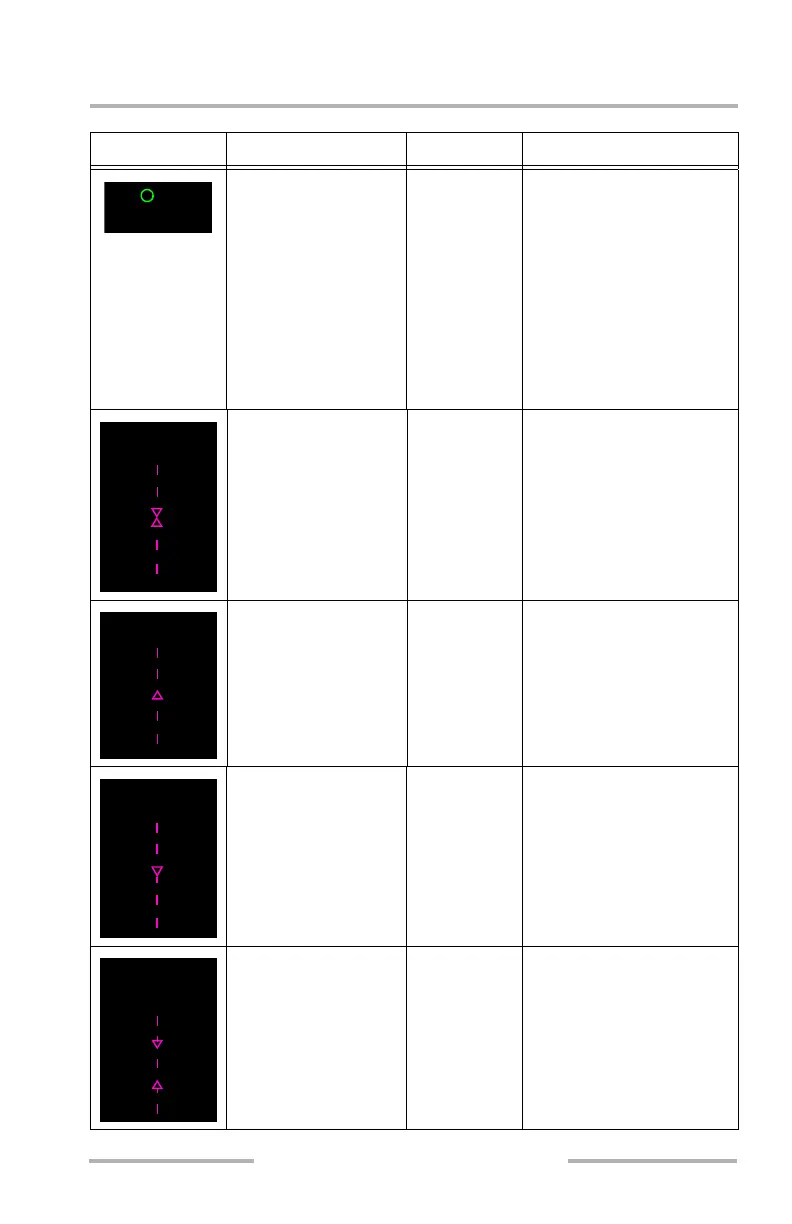

Symbol Name ND Mode Remarks
Flap speed profile
point and settings (G)
MAP, MAP
CTR
Indicates the approximate
map position for
FMC-calculated flap and
speed settings. Flap setting
is indicated only for flaps 1,
5, and 20.
Position and settings are
calculated to be on speed,
on path and on time at the
final approach fix.
Waypoint altitude
constraint: active (M),
inactive (W)
MAP, MAP
CTR
At Altitude example.
Waypoint altitude
constraint: active (M),
inactive (W)
MAP, MAP
CTR
At or Above Altitude
example.
Waypoint altitude
constraint: active (M),
inactive (W)
MAP, MAP
CTR
At or Below Altitude
example.
Waypoint altitude
constraint: active (M),
inactive (W)
MAP, MAP
CTR
Block Altitude example.
F1
190
NOLLA
2500
NOLLA
2500A
NOLLA
2500B
FL200B
FL180A
NOLLA
