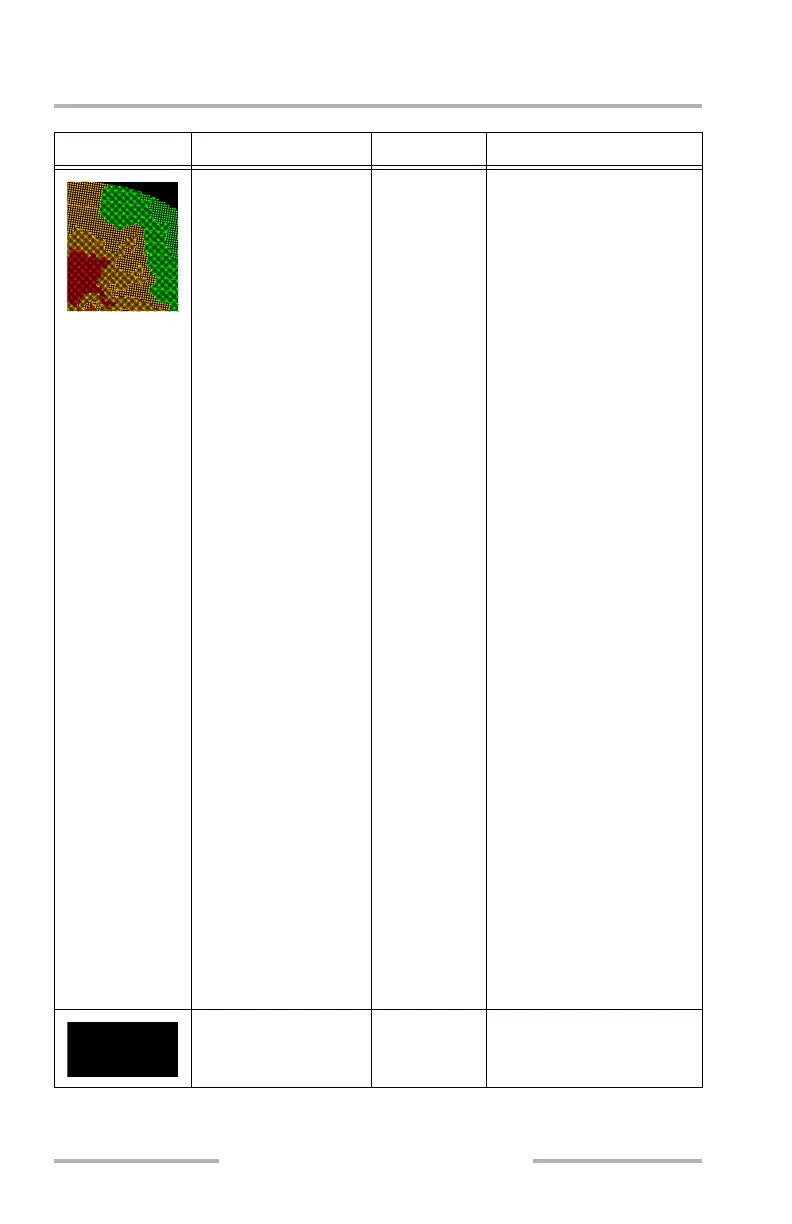

Symbol Name ND Mode Remarks
Terrain display (R, A,
G, M )
MAP, MAP
CTR,
mini-map
Displays terrain data from
the GPWS terrain data
base.
When airplane is lower
than 2,000 feet above
terrain:
• from 2,000 feet
below to 1000 feet
below airplane
altitude (low-density
dotted green)
• from 1,000 feet
below to 500 feet
(250 feet with gear
down) below
airplane altitude
(high-density dotted
green)
• from 500 feet below
(250 feet with gear
down) to 1,000 feet
above airplane
altitude (low-density
dotted amber)
• from 1,000 feet to
2,000 feet above
airplane altitude
(high-density dotted
amber)
• more than 2,000 feet
above airplane
altitude (dotted red)
• no terrain data
available (dotted
magenta)
• look-ahead terrain
caution alert is
occurring (solid
amber)
• look-ahead terrain
warning alert is
occurring (solid red)
Obstacle annunciation
(R, A)
MAP, MAP
CTR,
mini-map
Obstacle caution alert (A),
obstacle warning alert (R).
OBSTACLE
