787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Navigation Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.40.27
Look-Ahead Terrain
[Option – Lookahead Peaks]
Symbol Name ND Mode Remarks

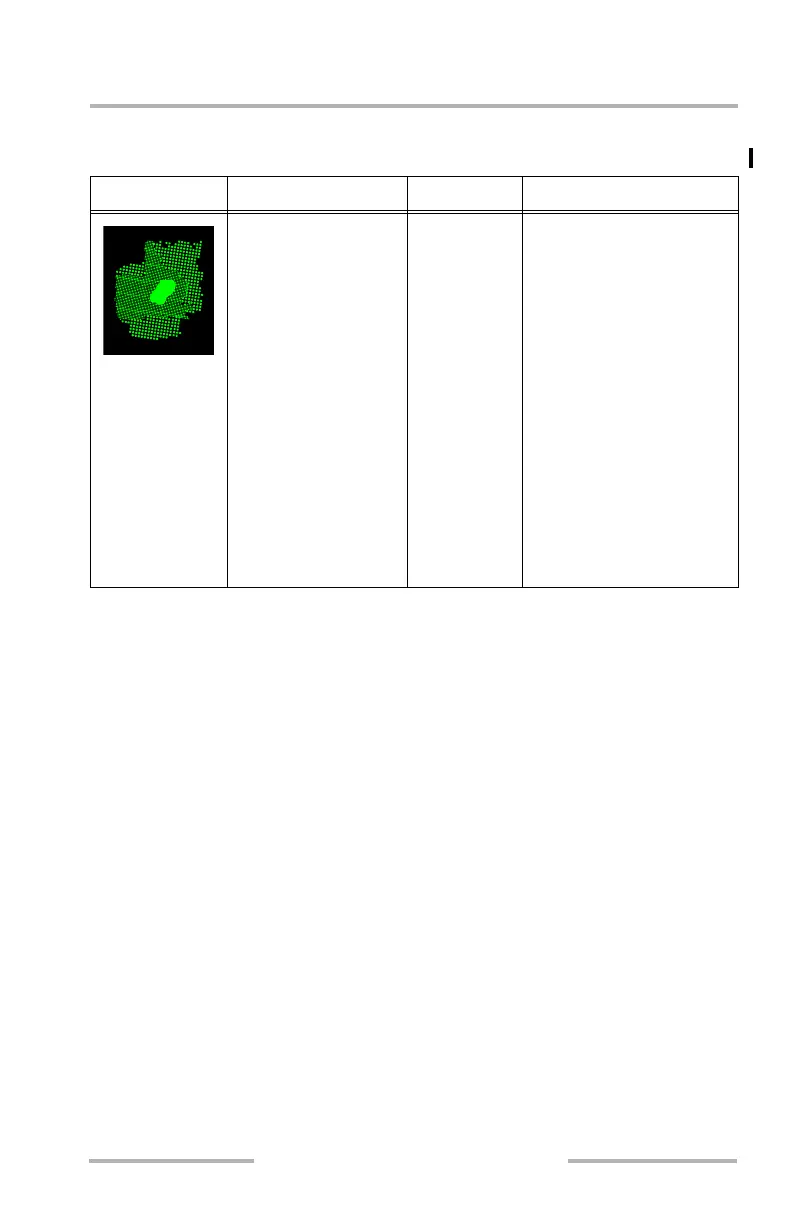

Terrain display (G) MAP, MAP
CTR,
mini-map
Displays terrain data from
the GPWS terrain data
base.
When airplane is higher
than 2,000 feet above
terrain: peaks contours
displayed in three densities:
• highest obstacles or
peaks (solid green)
• intermediate height
obstacles or peaks
(high-density dotted
green)
• lowest obstacles or
terrain peaks
(low-density dotted
amber)
August 14, 2009
