Device description
www.bora.com
5 Device description
12

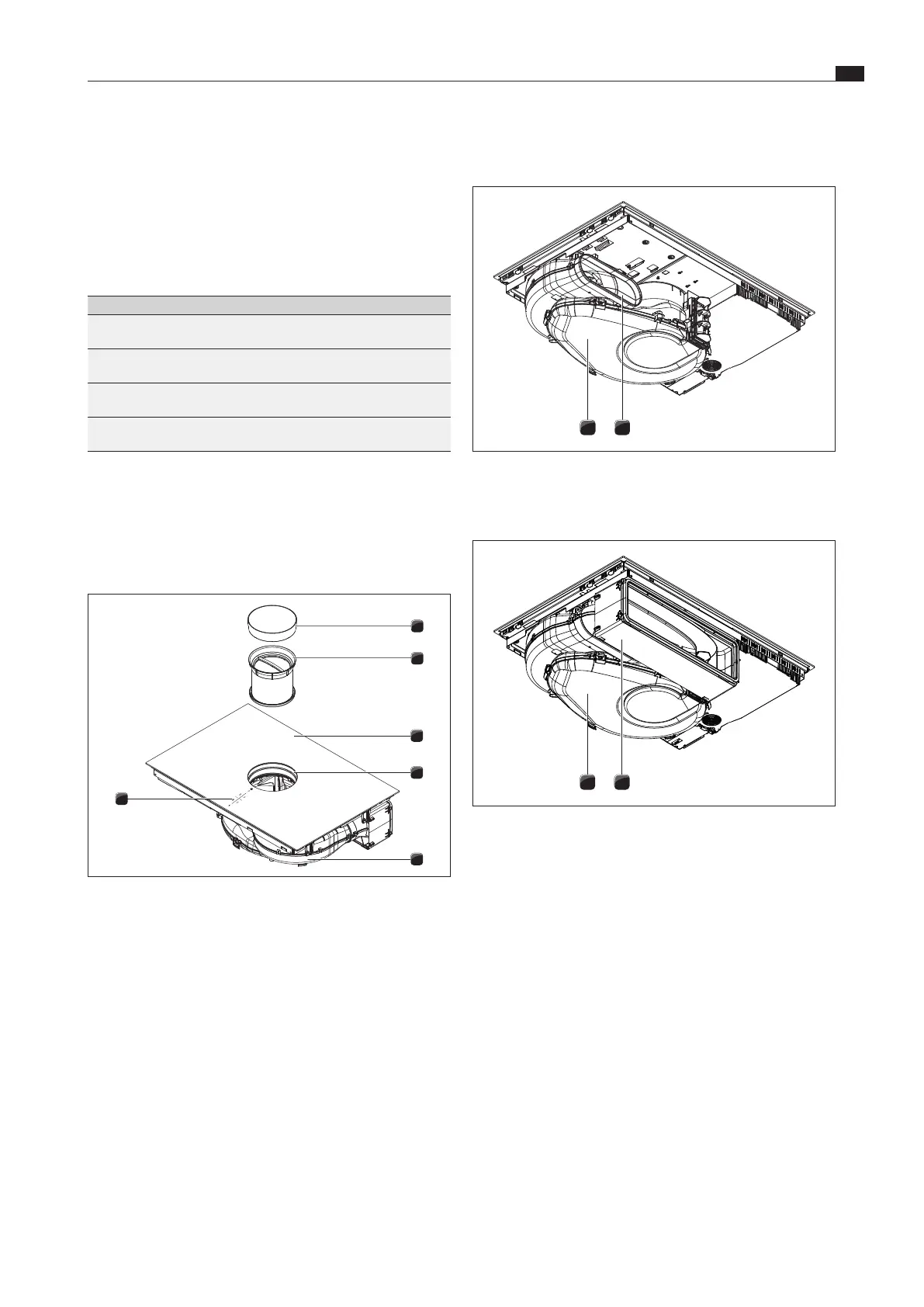

Fig. 5.2 Back view of PUXA, PURA
[1] Exhaust opening
[2] Air guiding housing with housing base
12
Fig. 5.3 Back view of PUXU, PURU
[1] Air cleaning box with telescopic pull-out
[2] Air guiding housing with housing base
5.2.2 Operating panel and operating principle
i
The operating principle and functions are described in
more detail in the Operation chapter.
The cooktop extractor and cooktops are operated via a central
operating panel. The operating panel is fitted with electronic
sensor buttons and display panels. The sensor buttons respond
to finger contact (touch zones).
Observe all safety and warning information during operation (see
Safety chapter).
5.1 Model description
Model Long description
PUXA BORA X Pure surface induction cooktop with integrated
cooktop extractor – exhaust air
PUXU BORA X Pure surface induction cooktop with integrated
cooktop extractor – recirculation
PURA BORA Pure induction cooktop with integrated cooktop
extractor – exhaust air
PURU BORA Pure induction cooktop with integrated cooktop
extractor – recirculation
Tab. 5.1 Model description
5.2 System description
5.2.1 Structure
2
1
4
5
3
6
Fig. 5.1 Cooktop
[1] Air inlet nozzle
[2] Stainless steel grease filter
[3] Cooktop
[4] Inlet opening
[5] Fan
[6] Operating panel
