Fig. 6.43 Inserting the activated charcoal lter through the vent
opening
XX
Tilt the activated charcoal filter towards you slightly and insert
it through the inlet opening.
XX
Guide the left end of the filter into the opening in the filter
housing.
Fig. 6.44 Placing the activated charcoal lter in the end position
XX
Push the activated charcoal filter into the filter housing until it
will go no further (to do this, you can place one finger between
the slats and gradually push the filter into the housing).
XO
The end position of the activated charcoal filter is reached
when the filter has been fully pushed inside the filter housing.
 
2
1
Fig. 6.45 Inserting the lter replacement cover
[1] Filter replacement cover
[2] Inlet opening
XX
Inside the inlet opening push the filter replacement cover until
it comes to a stop in the filter housing opening.
XX
Check that the filter replacement cover is positioned correctly.
XX
Push the telescopic pull-out [1] until it is tight up against the
back wall of the unit [3].
XO
With the telescopic pull-out the distance to the back wall of
the unit can be flexibly bridged.
XX
Check that the telescopic pull-out [1] fits accurately, is flush
with the cut-out on the back wall of the unit [3] and closes it
off.
XX
Secure the telescopic pull-out [1] to the back wall of the unit
[3] using the adhesive tape [2]

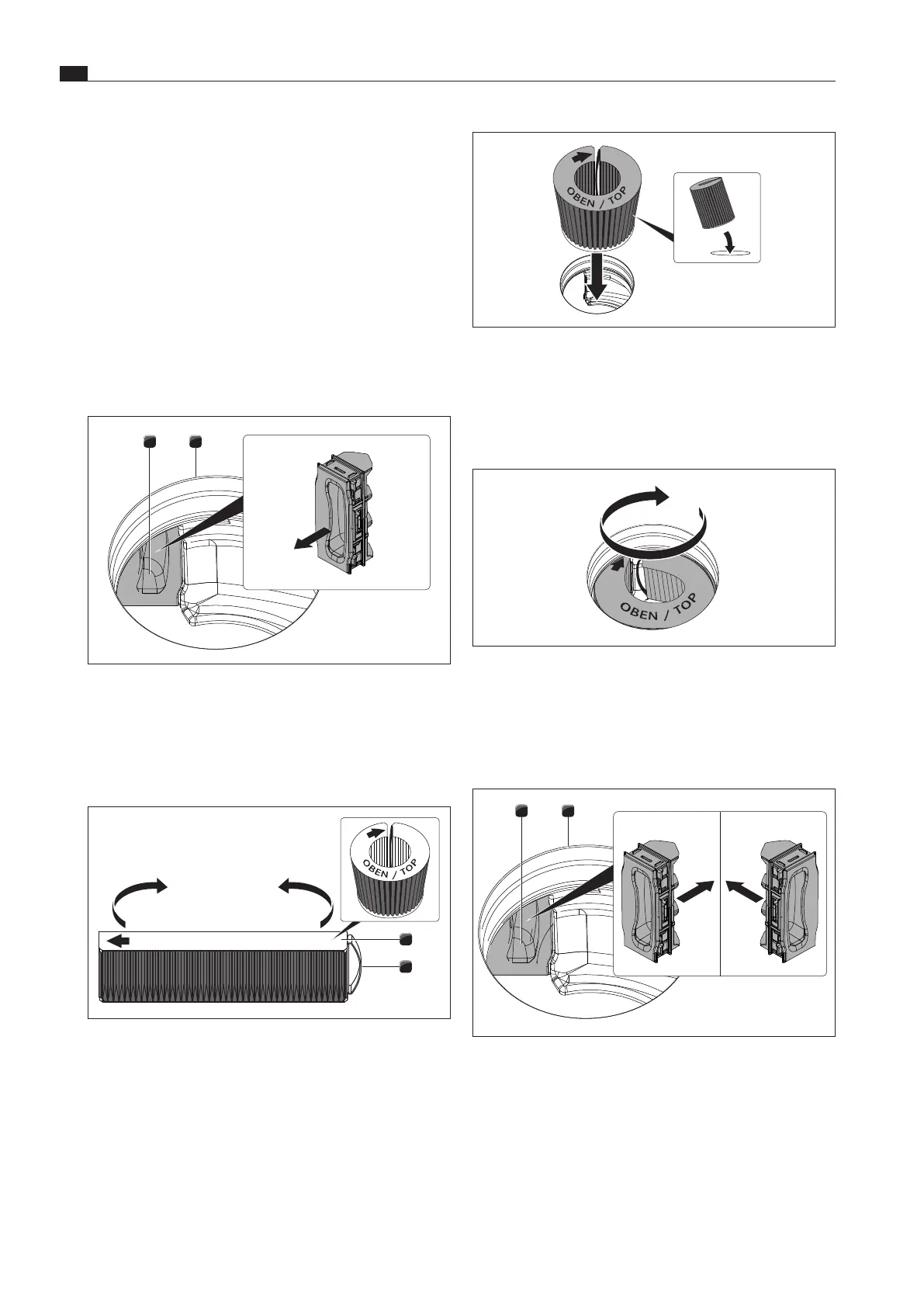

6.7.10 Inserting the activated charcoal filter
i
Removing the filter – see “Cleaning” chapter, “Changing
the filter”
2
1
Fig. 6.41 Remove the lter replacement cover
[1] Filter replacement cover
[2] Inlet opening
XX
Inside the inlet opening [2] pull the filter replacement cover [1]
out through the opening in the filter housing.
OBEN / TOP
2
1
Fig. 6.42 Activated charcoal lter
[1] Activated charcoal filter
[2] Grip strap
XX
Remove the packaging from the activated charcoal filter [1].
XX
Position the activated charcoal filter correctly with the help of
the printed symbols (arrow left, grip strap [2] right).
XX
Hold the activated charcoal filter at both ends.
XX
Bend the activated charcoal filter into a cylindrical shape so
that both ends of the filter are opposite each other.
