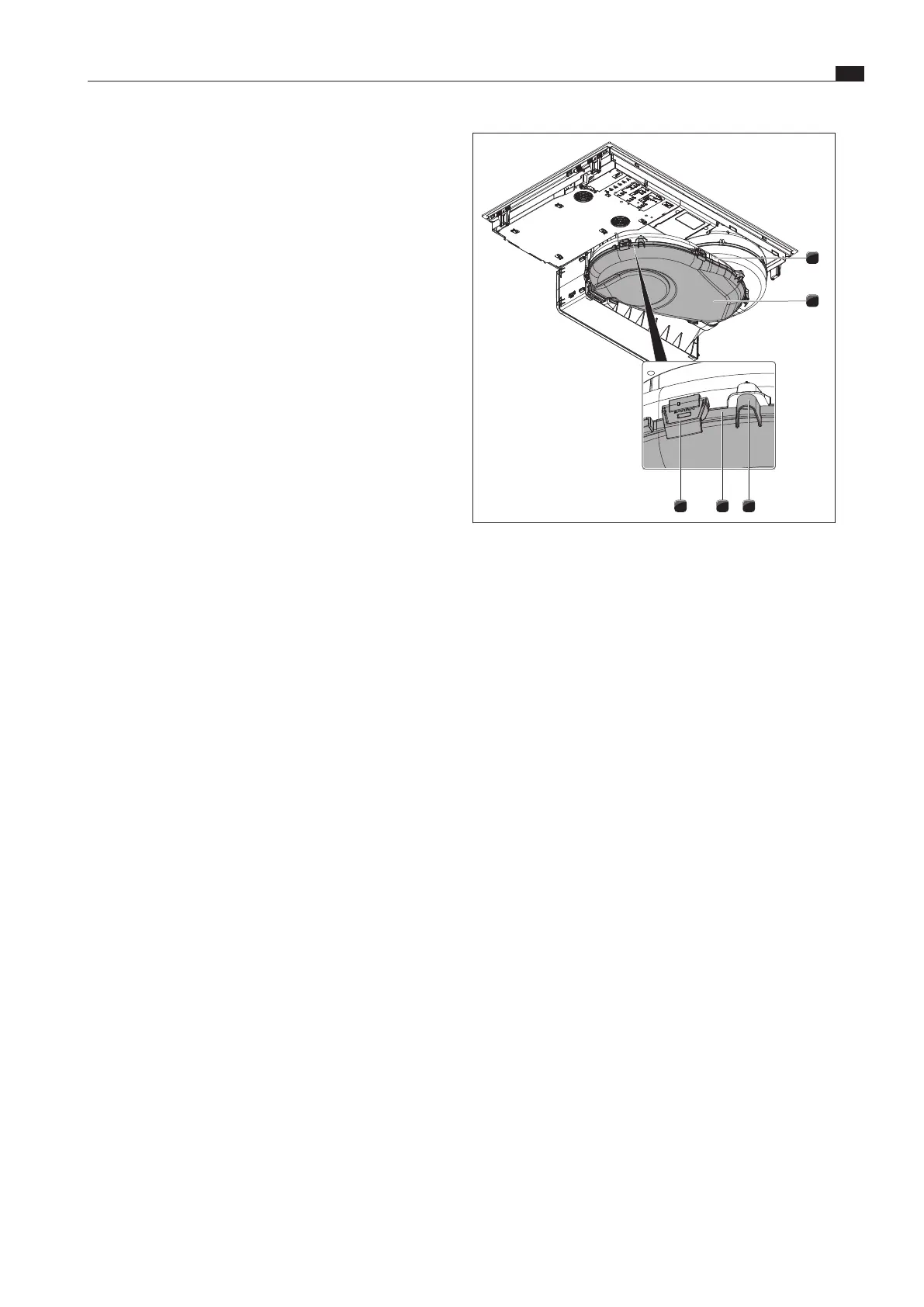

Fig. 8.4 Air guiding housing
[1] Air guiding housing
[2] Housing base
[3] Spigot
[4] Sealing groove
[5] Lock
XX
Hold the housing base [2] with one hand.
XX
Release the 6 locks [5] around the edge of the base.
XX
Remove the housing base [2].
XX
Clean the air guiding housing [1] and the housing base [2] with
a mild cleaning agent.
Closing the air guiding housing
XX
Position the housing base [2] under the air guiding housing [1]
with the help of the 3 spigots[1].
XX
Push the housing base [2] upwards into the sealing groove [4].
XX
Close the 6 locks [5].
XX
Check that the housing base is positioned correctly.
XX
Inside the inlet opening push the filter replacement cover until
it comes to a stop in the filter housing opening (To insert the
filter replacement cover see Fig. 8.11).
XX
Check that the filter replacement cover is positioned correctly.
XX
Insert the stainless steel grease filter and the air inlet nozzle.
8.4.4 Removing liquids from the device
Any liquids that flow into the device through the inlet opening
are caught by the stainless steel grease filter (up to 150 ml) and
in the air guiding housing. Do the following:
XX
Switch off the fan and deactivate the after-run function (see
Operation chapter).
XX
Remove the air inlet nozzle and stainless steel grease filter
(see Cleaning and Maintenance chapter).
XX
Empty the stainless steel grease filter.
XX
Check whether any liquid has gathered in the base of the air
guiding housing.
XX
If necessary, wipe the liquid up from the housing base from
above through the inlet opening using a sponge or cloth.
XX
Clean the air guiding housing (see Cleaning and Maintenance
chapter, air guiding housing).
XX
To dry the odour filter and duct parts respectively, switch on
the cooktop extractor at a minimum power level of 5.
XO
After 120 minutes the cooktop extractor will automatically
switch to the automatic after-run function
(see Device Description chapter).
8.5 Cleaning the air guiding housing
Grease particles and limescale residues from cooking vapours
can settle on the surface of the air guiding housing. For this
reason, regular cleaning is essential.
The air guiding housing can be found on the bottom of the
cooktop inside the floor unit.
Opening the air guiding housing.
XX
Make sure that the cooktop and cooktop extractor are
switched off (see the Operation chapter).
XX
Wait until the fan level indicator shows
0
.
XX
Remove the air inlet nozzle and stainless steel grease filter.
XX
Inside the inlet opening pull the filter replacement cover out
of the filter housing opening (To remove the filter replacement
cover see Fig. 8.5).
