Installation
www.bora.com
6.4 Assembly instructions
6.4.1 Required clearance distances
XX
Observe the required clearance distances.
1
3
2

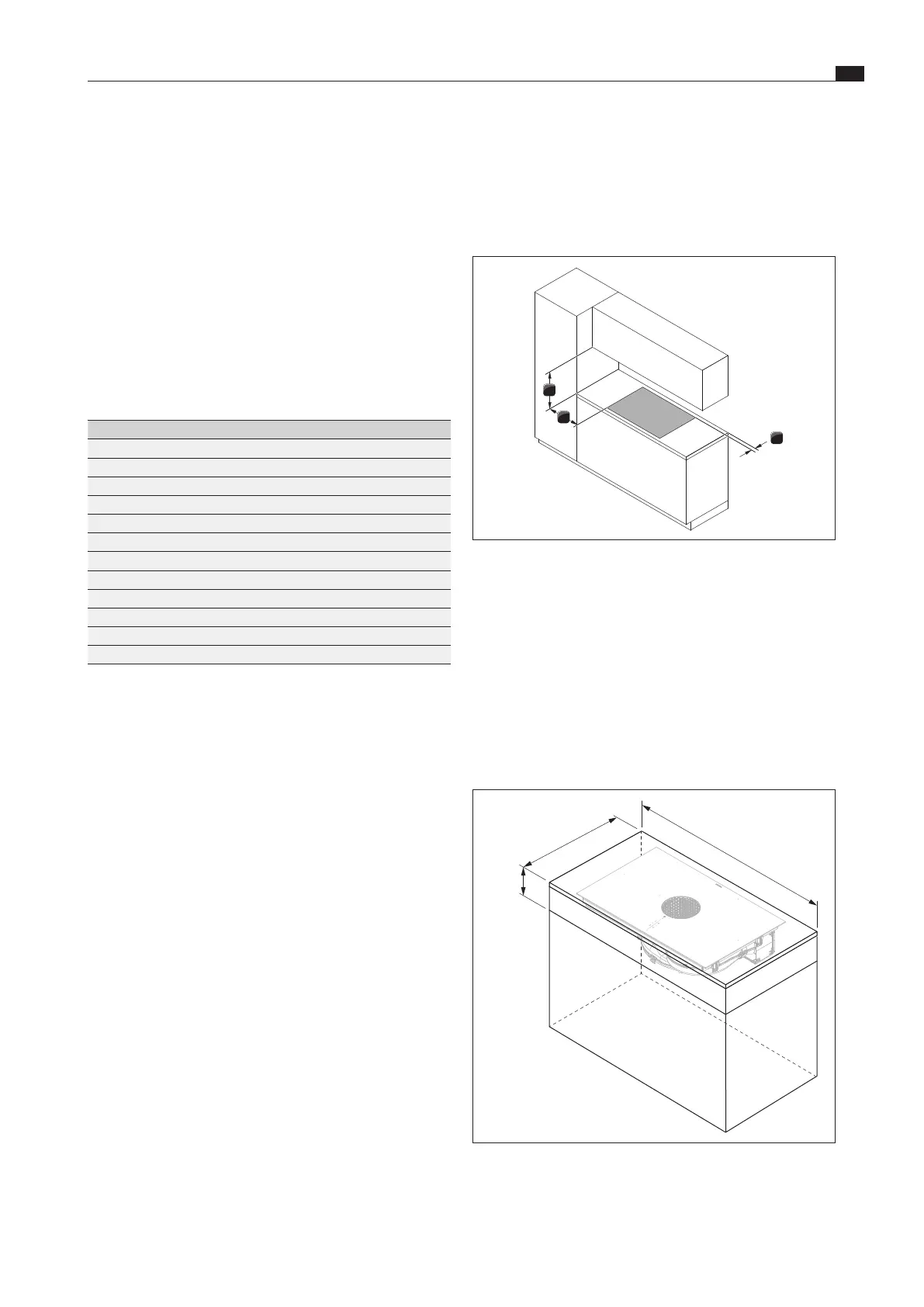

Fig. 6.3 Required clearance distances
[1] Minimum clearance of 50mm between the worktop cut-out
and the rear edge of the worktop.
[2] Minimum clearance of 300mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600mm between the worktop and the
wall unit. A minimum clearance of 1000mm is recommended
for ergonomic reasons.
6.4.2 Minimum unit dimensions for X Pure
(PUXA, PUXU)
199
≥600
≥900
Fig. 6.4 X Pure minimum unit dimensions
6.1.2 Home In module PUHIM (optional)
Via this additional interface it is possible to establish a
connection to other systems and, for example, a window contact
switch or low pressure warning device can be connected. The
module is to be integrated in the cooktop.
i
The BORA Pure Home In module PUHIM is available as an
accessory.
i
The BORA window contact switch UFKS is available as an
accessory.
6.2 Scope of delivery
Scope of delivery: PUXA, PUXU, PURA, PURU Quantity
Cooktop with integrated cooktop extractor 1
Air inlet nozzle 1
Stainless steel grease filter 1
Operating and installation instructions 1
Installation clamps 4
Sealing tape 1
Height adjustment plate set 1
Glass ceramic scraper 1
Bag containing various small parts for assembly 1
Additional scope of delivery: PURU, PUXU
Activated charcoal filter 1
Template for back wall cut-out 1
Tab. 6.1 Scope of delivery
6.2.1 Checking the scope of delivery
XX
Make sure the delivery is complete and check it for damage.
XX
If there are any missing or damaged parts, please notify BORA
After Sales Service immediately.
XX
Do not under any circumstances install parts which are
damaged.
XX
Dispose of transport packaging in the proper manner (see the
“Decommissioning, disassembly and disposal” chapter).
6.3 Tool and aids
The following special tools are required to correctly install the
cooktop:
XO
Compass saw or hand saw
XO
Drilling template for cut-out on rear wall PURU (included in
scope of delivery)
XO
Torx 20 screwdriver
XO
Black, heat-resistant silicone sealant
