bora PUXU - Initial Operation; Dealer and Service Menu; Dealer and Service Menu Overview; Calling up the Dealer and Service Menu

EN
36
Installation
www.bora.com
Calling up the dealer and service menu
XX
Connect the appliance to the power supply.
1
23
4

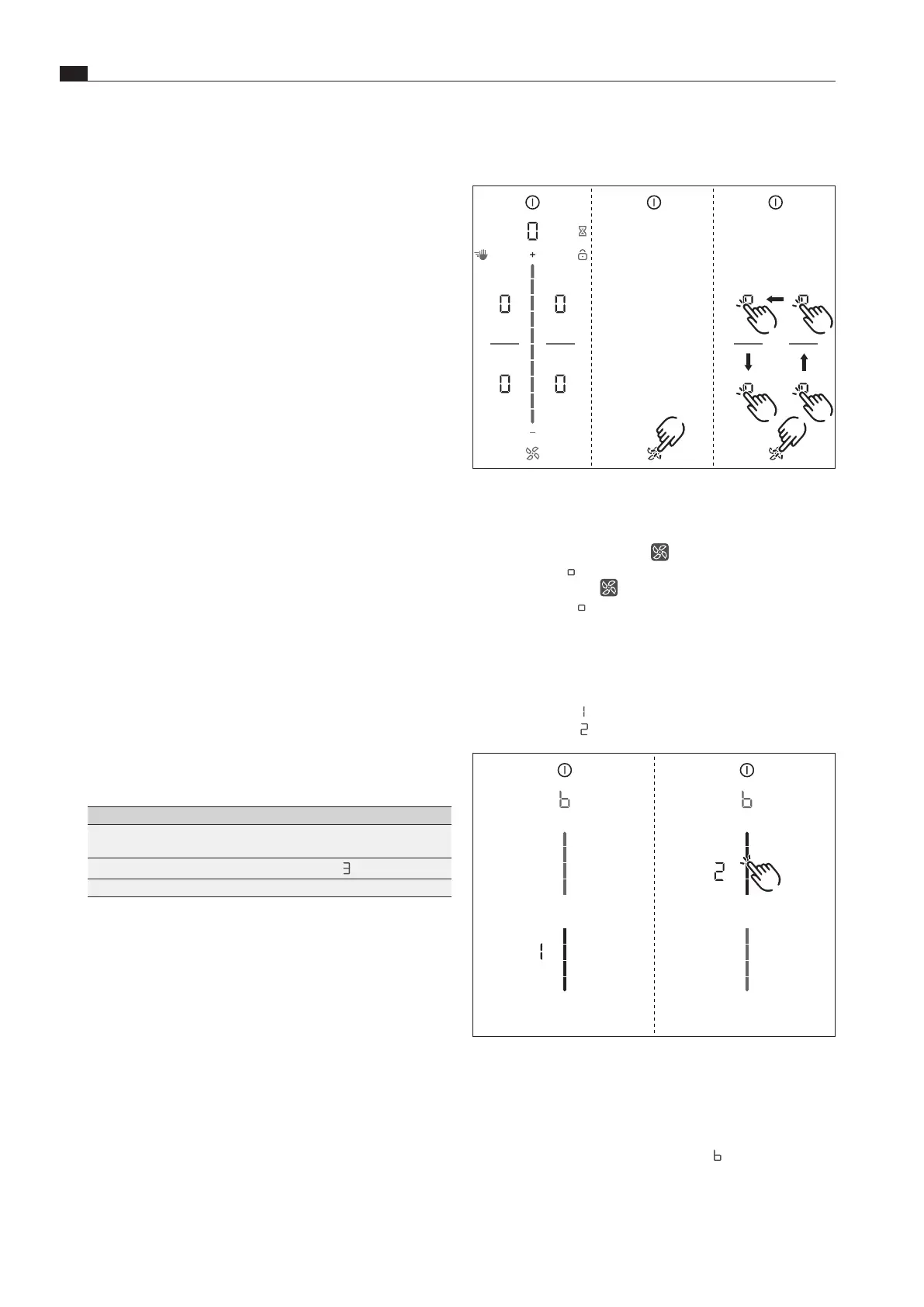

Fig. 6.51 Calling up the dealer and service menu
XO
The standard display appears and the fan symbol pulses for
2 minutes.
XX
Long press on the fan button .
XO
4 input points
o
are shown.
XX
Keep the fan button pressed and at the same time press
the input points
o
in the specified order.
XO
Menu item B is displayed.
Menu item B: configuration of the extraction system
The extraction system must be configured.
There are two operating modes to choose from:
XO
Operating mode
1
: recirculation system (factory setting)
XO
Operating mode
2
: exhaust air system
Fig. 6.52 Display Menu item B: conguring the extraction
system
XX
Select the corresponding operating mode (tap the
corresponding segment on the slider ).
XX
Confirm and save the setting by moving to the next menu item
(tap the multi-function display/indicator
b
).
XX
Connect the power supply cable to the power supply [1] of the
device in accordance with the relevant connection diagram
(see Fig. Connection diagram or underside of appliance).
XX
For a one-phase or two-phase connection, connect the
relevant contacts using the bridge provided (in scope of
delivery).
XX
Secure the connection cable with the strain relief clamp (in
scope of delivery).
XX
Close the power supply housing with the power supply cover
[2] (in scope of delivery).
XX
Lay the connection cable along the mounting eyes [3] with the
help of the cable ties (in scope of delivery).
XX
Ensure that the cable is not trapped or damaged and is not
able to come into contact with any hot areas on the cooktop.
XX
Check that installation has been carried out correctly.
6.9 Initial operation
i
During initial operation some basic settings (basic
configuration) must be applied using the dealer and
service menu.
6.9.1 Dealer and service menu
i
The dealer and service menu can be called up up to
2 minutes after the appliance has been connected to the
power supply.
i
The system adopts and saves the settings made when
you exit the corresponding menu item.
i
Below you will find explanations on how to use the menu
and a description of the most important menu items.
Dealer and service menu overview
Menu item/Description/Selection area Factory setting
B Extraction system (exhaust air/
recirculation system)
Recirculation
C Power management
3
D Demo mode Off
Tab. 6.3 Menu overview
