EN
29
Installation
www.bora.com
B: floor unit with false floor under the cooktop
6
4
1
5
32

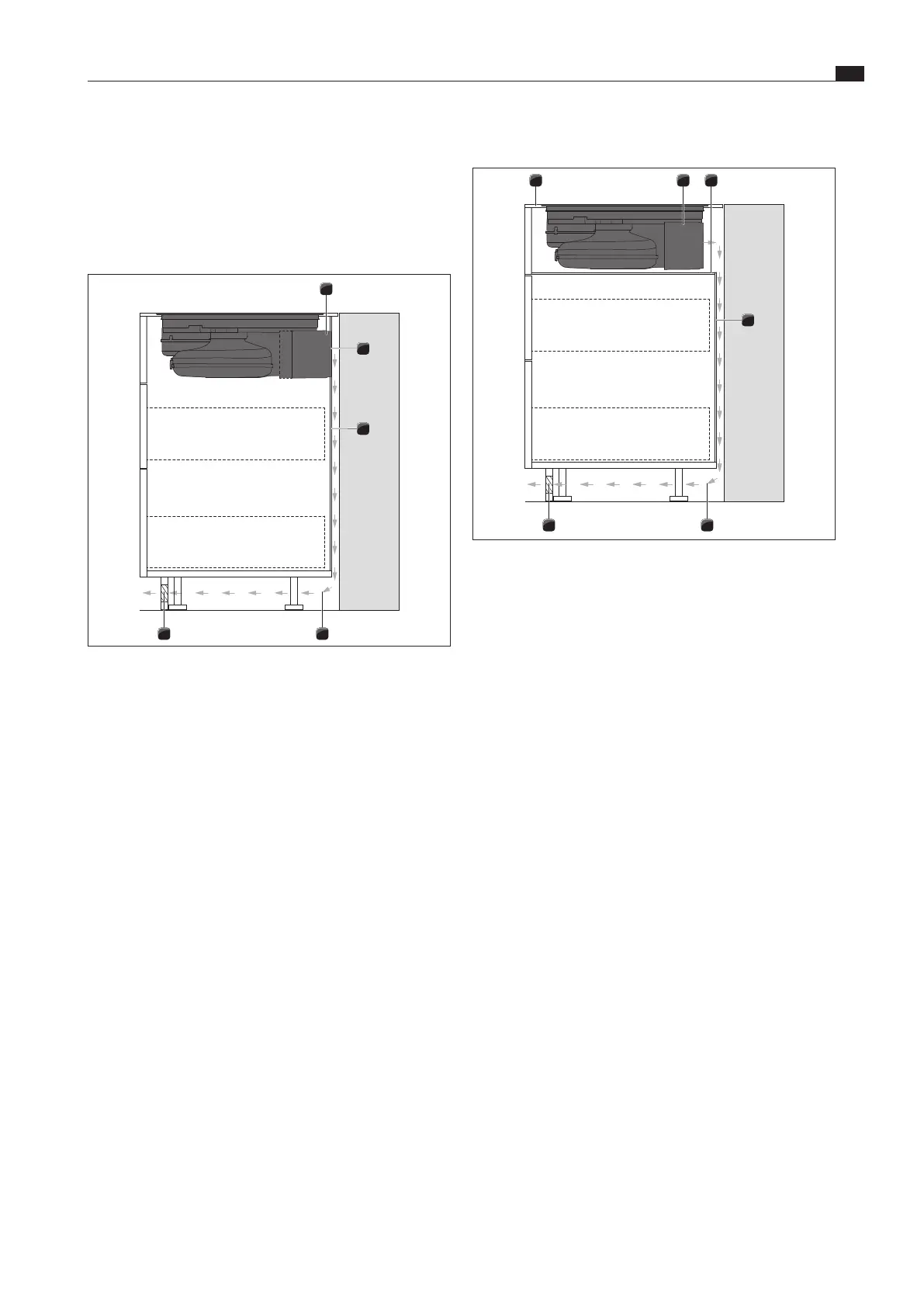

Fig. 6.26 Installation variant with false oor
[1] Worktop
[2] Air cleaning box
[3] False floor
[4] Back wall of unit
[5] Return flow of recirculated air
[6] Return flow aperture
The recirculated air [5] is blown into the free space between the
worktop [1] and the false floor [3] (the air cleaning box [2] does
not connect with the rear wall). The recirculated air goes behind
the rear wall of the unit [4] and through the return flow aperture
[6] back into the room.
For installation purposes, this means that:
XO
a false floor is necessary below the cooktop.
XO
There does not need to be a cut-out in the back wall of the
unit.
6.7.2 Installation variants (A and B) for
recirculation appliances
There are 2 installation variants for recirculation appliances
PUXU and PURU: A and B
A: floor unit with continuous back wall
3
1
4
2
5
Fig. 6.25 Installation variant with continuous back wall
[1] Air cleaning box
[2] Connection with the back wall
[3] Continuous back wall in the unit
[4] Return flow of recirculated air
[5] Return flow aperture
The recirculated air [4] is guided through the connection with the
back wall [2] of the air cleaning box [1] directly behind the rear
wall of the unit [3]. The recirculated air goes back in to the room
through the return flow aperture [5].
For installation purposes, this means that:
XO
no false floor is necessary below the cooktop.
XO
There must be a cut-out in the back wall.
