Cleaning and Maintenance
www.bora.com

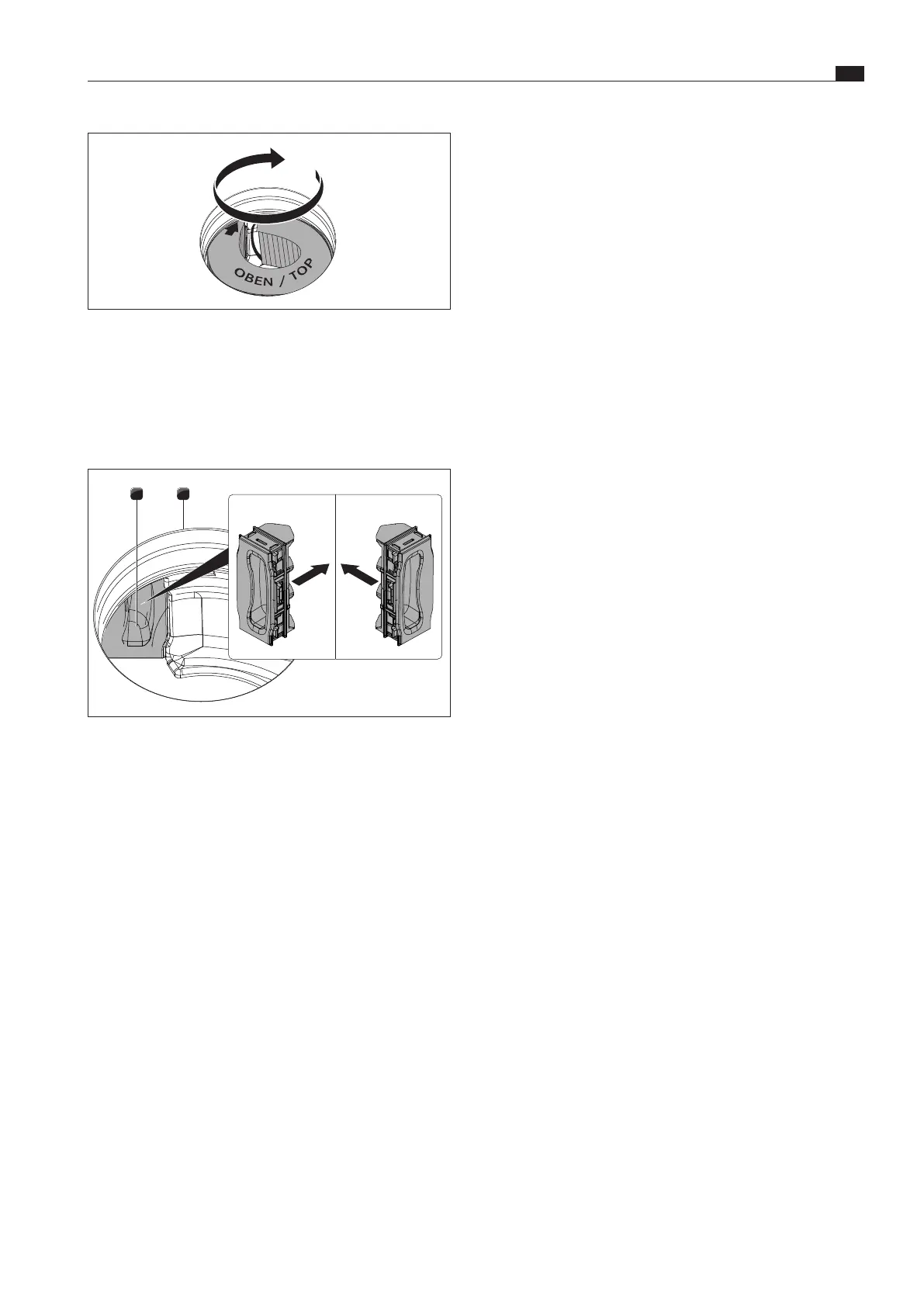

Fig. 8.10 Placing the activated charcoal lter in the end position
XX
Push the activated charcoal filter into the filter housing until
it will go no further (To do this, you can place one finger
between the slats and gradually push the filter into the
housing).
XO
The end position of the activated charcoal filter is reached
when the filter has been fully pushed inside the filter housing.
2
1
Fig. 8.11 Inserting the lter replacement cover
[1] Filter replacement cover
[2] Inlet opening
XX
Inside the inlet opening, push the filter replacement cover
until it comes to a stop in the filter housing opening.
XX
Check that the filter replacement cover is positioned correctly.
XX
Insert the stainless steel grease filter and the air inlet nozzle.
XX
Reset the filter status indicator (see the Operation chapter,
customer menu).
