9.5.2 Connection to Curve ceiling-mounted
How to Connect

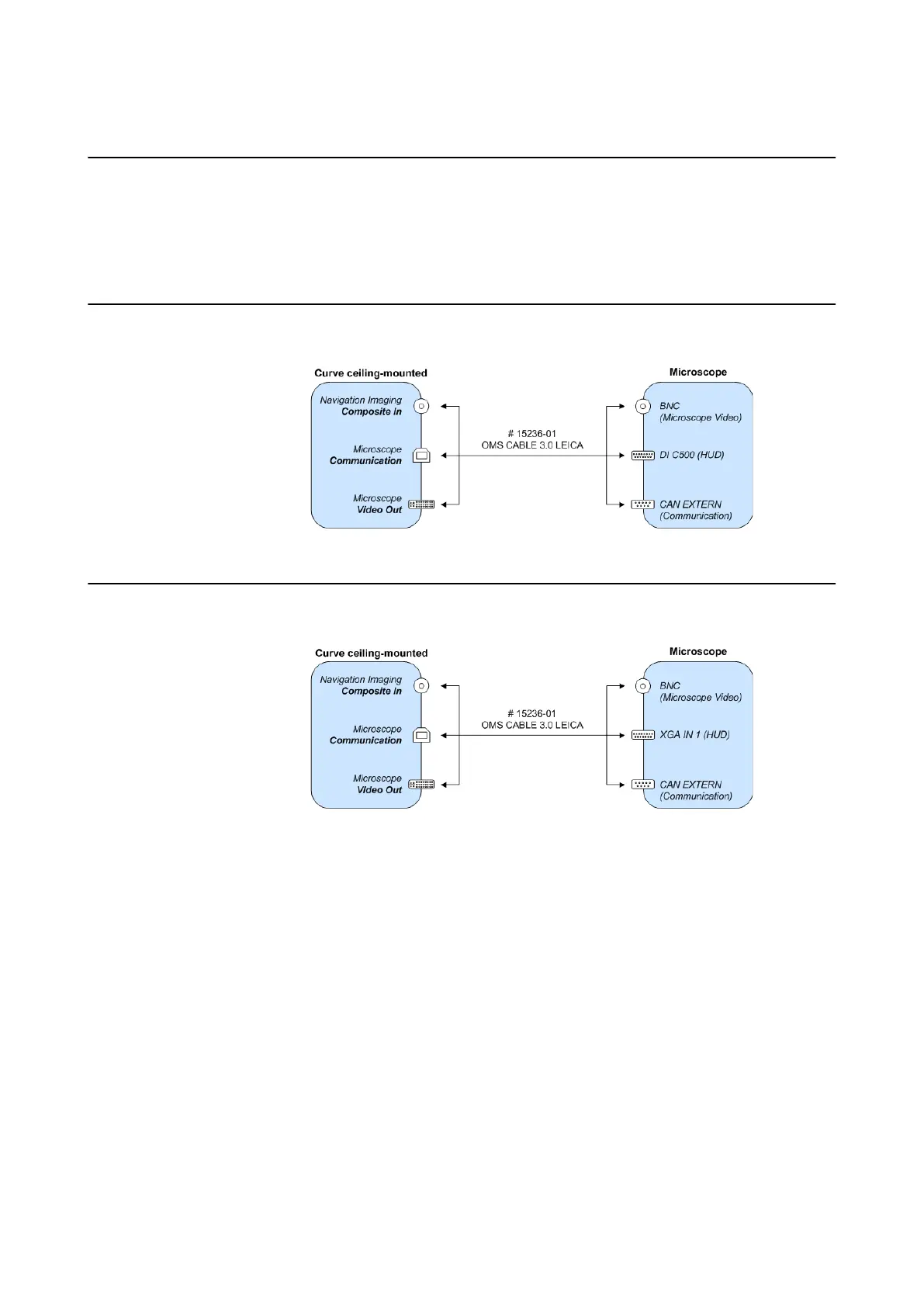

Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve ceiling-mounted system according to the following diagrams.
NOTE: Secure the loose cables that hang from the Curve ceiling-mounted Connection Unit to
the rail of the ceiling supply unit (CSU) with the Velcro strap.
Leica M500-N/M520
Figure 81
Leica M525/M530/M720 (SAI)
Figure 82
MICROSCOPES
Instrument User Guide Rev. 2.3 Cranial/ENT Optical 119
