9.7.4 Connection to Kolibri
How to Connect

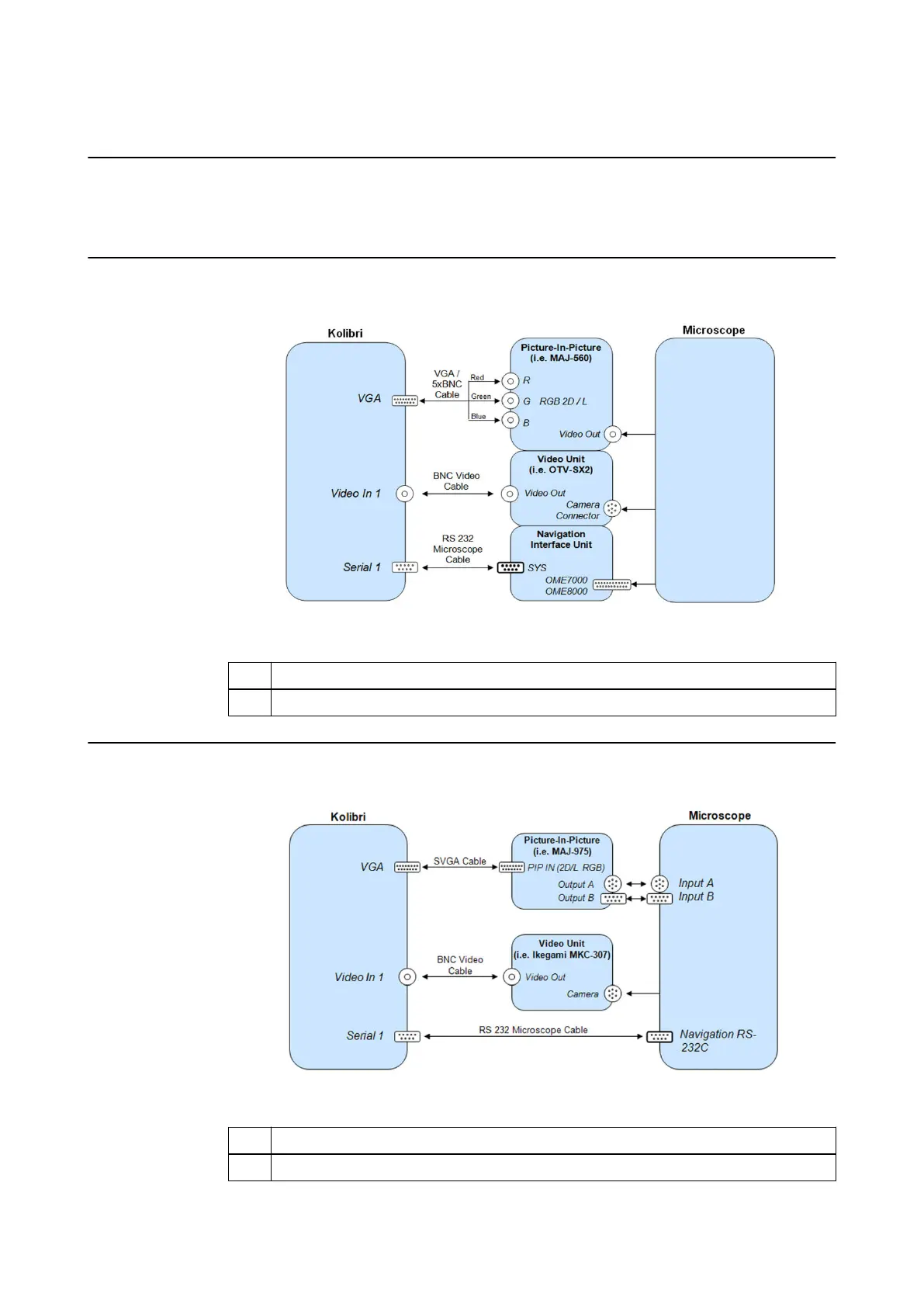

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kolibri system according to the following diagrams.
Olympus OME-7000/8000
Figure 101
No. Component
9 pole gender changer (female-female)
Olympus OME-9000
Figure 102
No.
Component
9 pole gender changer (female-female)
Connection to Kolibri
134 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
