9.5.3 Connection to Kick 1.0 and Kick 2.0
How to Connect

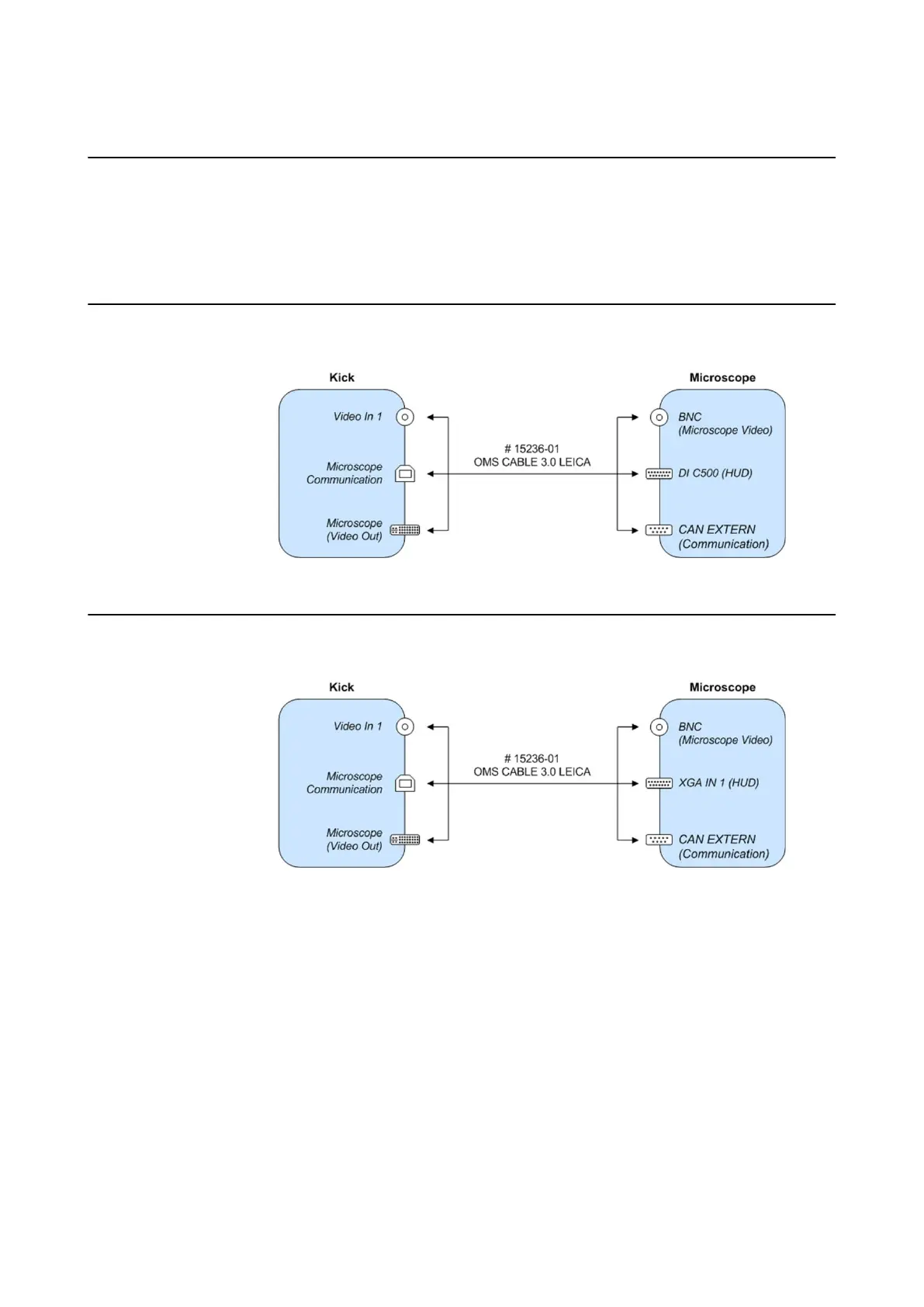

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kick system according to the following diagrams.
NOTE: Secure the loose cables that hang from Kick to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Leica M500-N/M520
Figure 83
Leica M525/M530/M720 (SAI)
Figure 84
Connection to Kick 1.0 and Kick 2.0
120 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
