9.7.2 Connection to Curve ceiling-mounted
How to Connect
Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve ceiling-mounted system according to the following diagrams.
NOTE: Secure the loose cables that hang from the Curve ceiling-mounted Connection Unit to
the rail of the ceiling supply unit (CSU) with the Velcro strap.

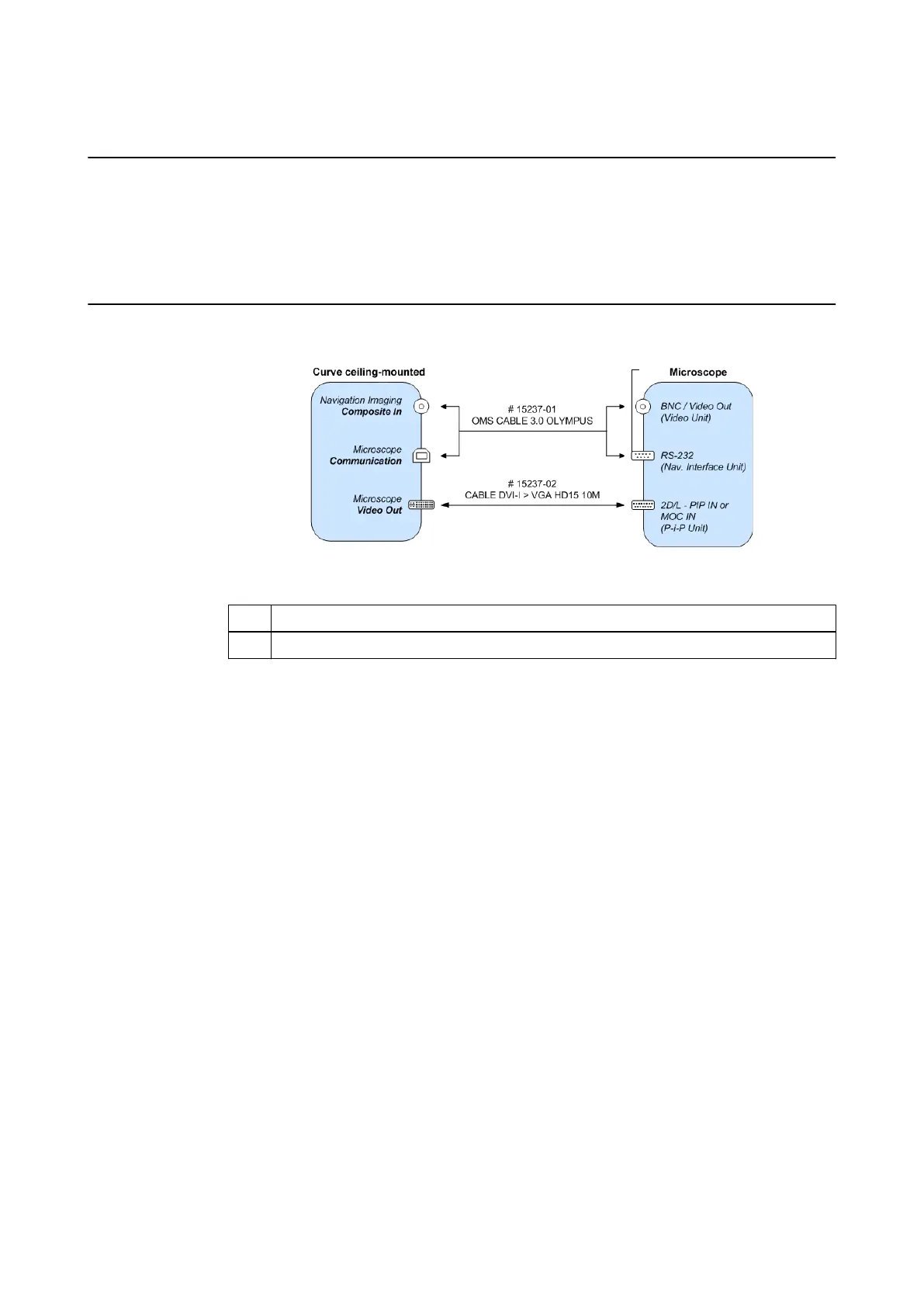

Olympus OME-7000/8000/9000
Figure 99
No. Component
①
Gender changer DB9 FA440-R2 (plug-plug)
Connection to Curve ceiling-mounted
132 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
