9.8.3 Connection to Kick 1.0 and Kick 2.0
How to Connect

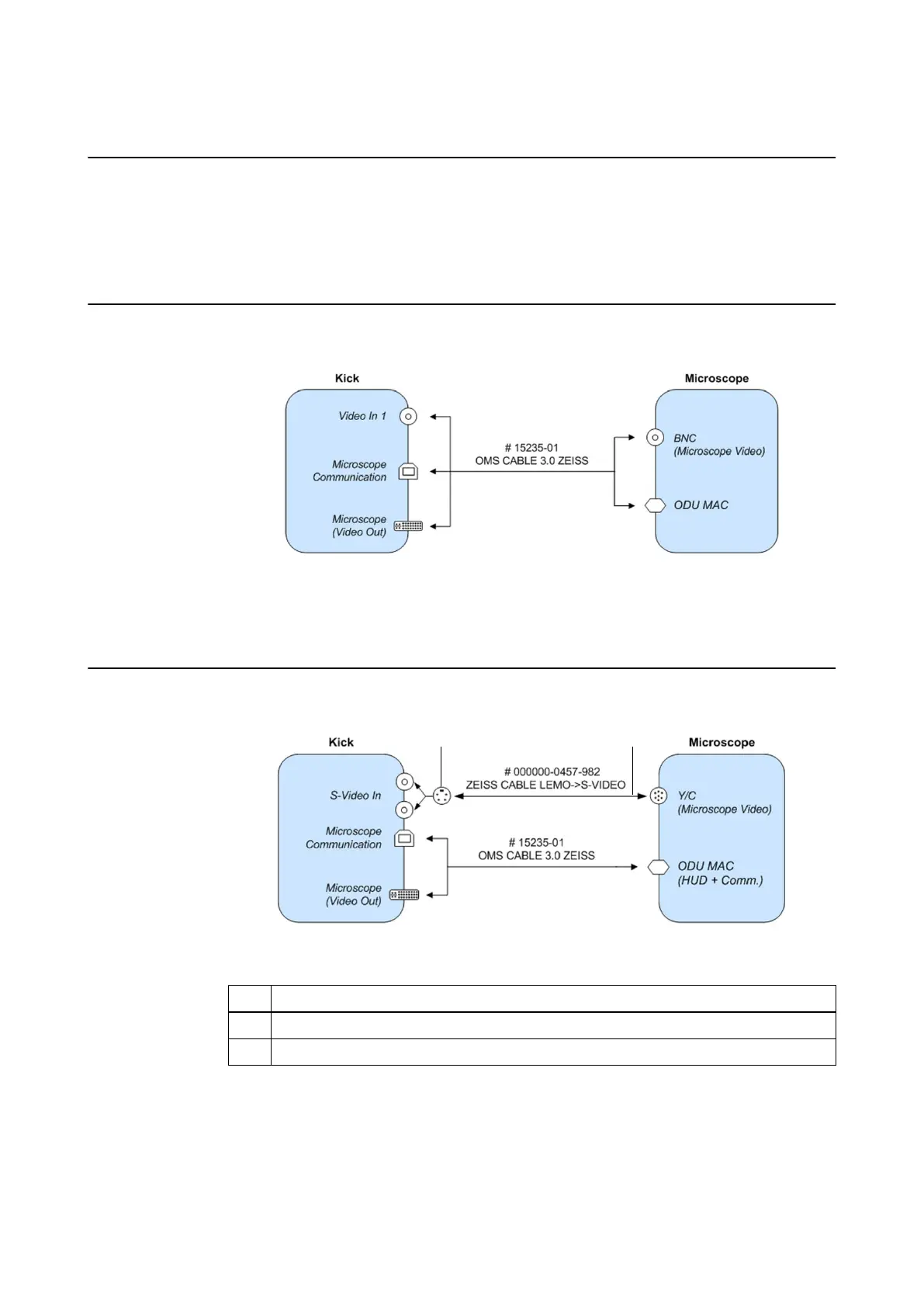

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kick system according to the following diagrams.
NOTE: Secure the loose cables that hang from Kick to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Zeiss OPMI Pentero/Neuro/Vario/VARIO 700 (SD)
Figure 115
NOTE: Image injection is not available for OPMI Vario and VARIO 700.
Zeiss OPMI PENTERO 800/PENTERO 900/VARIO 700 (HD)
Figure 116
No.
Component
①
Adapter cable SVHS to 2BNC
②
FGA 2B-4St/S-VHS-St 10m
NOTE: Image injection is not available for OPMI VARIO 700.
MICROSCOPES
Instrument User Guide Rev. 2.3 Cranial/ENT Optical 141
