9.6.4 Connection to Kolibri
How to Connect

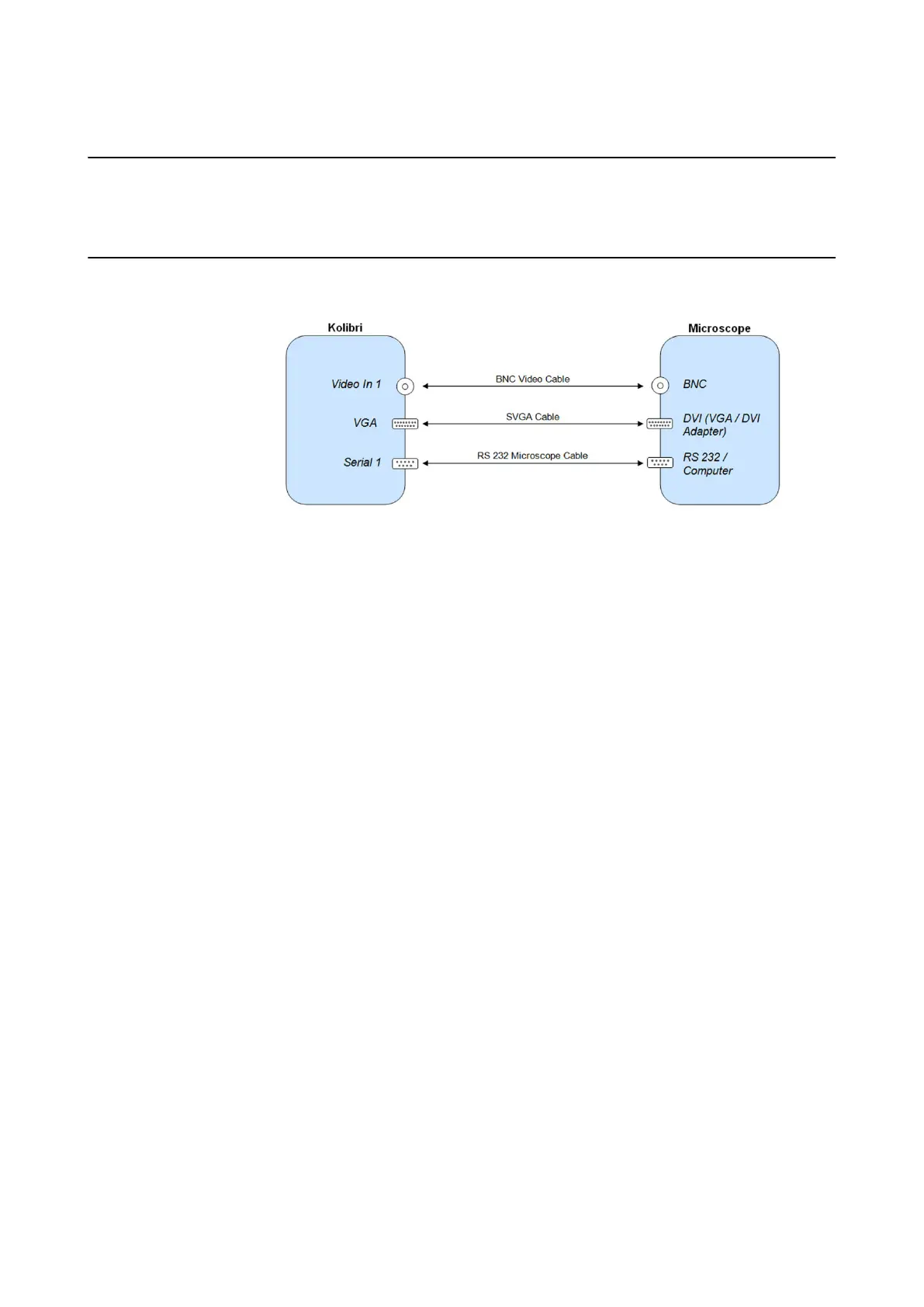

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kolibri system according to the following diagrams.
Haag-Streit Hi-R 1000/Hi-R 700
Figure 94
NOTE: Image injection is not available for Haag-Streit Hi-R 700.
MICROSCOPES
