5.3 Vario Reference Arm for Mayfield Headholder
Introduction
The Vario Reference Arm for Mayfield Headholder (52001) creates a flexible and extended
attachment of the Standard Cranial Reference Array onto the Mayfield Modified Skull Clamp.
Compatible Reference Arrays
Name Article No.
Standard Cranial Reference Array with 3 Marker Spheres (1 Piece) 41735
Standard Cranial Reference Array with 4 Marker Spheres (1 Piece) 41725
How to Attach the Array to the Reference Arm

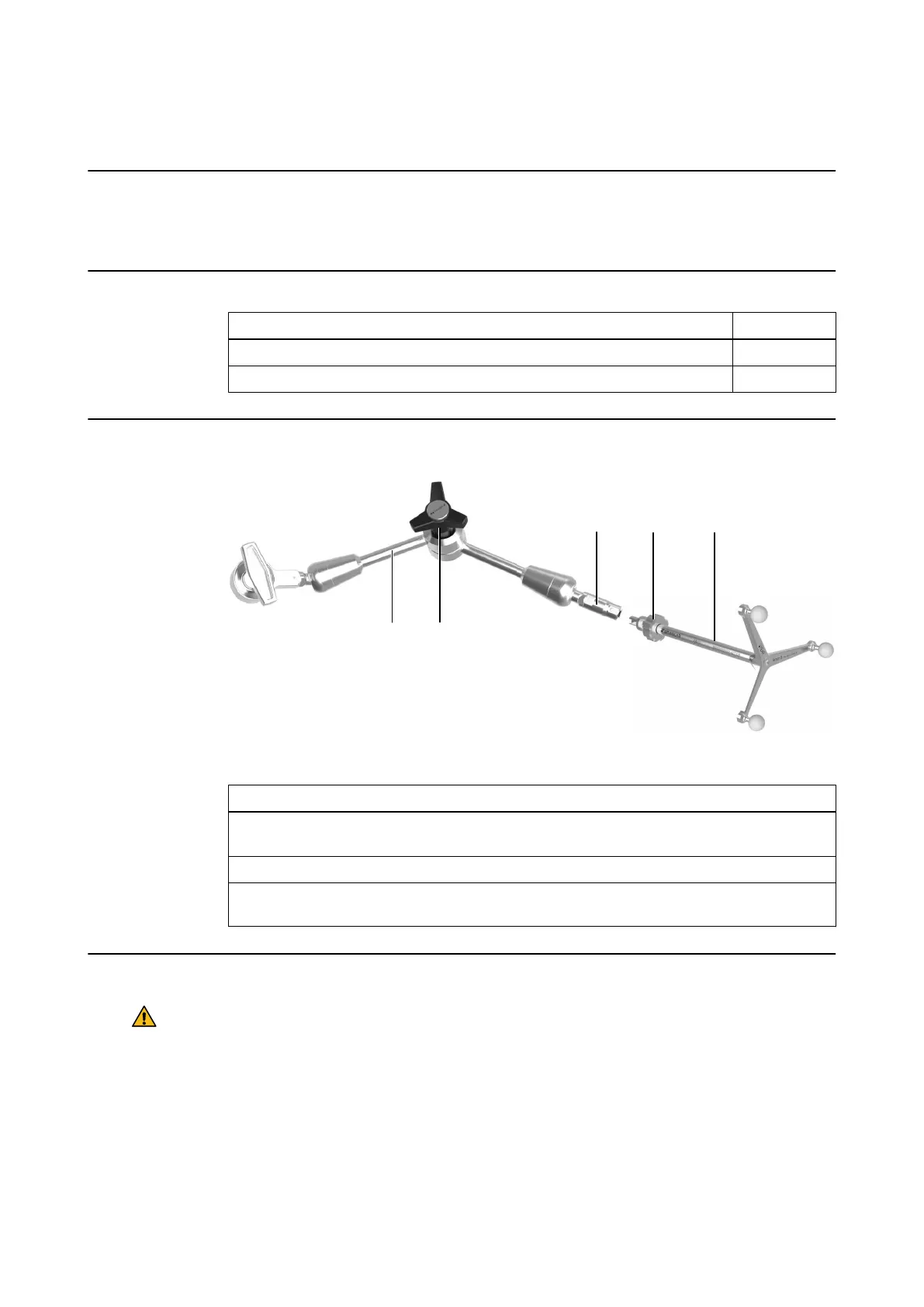

Figure 26
Step
1. Attach the unsterile Standard Cranial Reference Array ⑤ to the array connector ③, se-
curing it with the fixation nut ④.
2. To position the array, turn the central tension handle ② clockwise to loosen it.
3. Adjust the arm ① to the desired position and securely re-tighten the handle by turning it
counterclockwise.
Loosening the Arm
Warning
Never loosen the central tension handle without gripping the articulated arm with your
other hand. The Vario Reference Arm could fall on the patient.
Vario Reference Arm for Mayfield Headholder
64 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
