7.1.3 Attaching the Standard Fit Adapter to the Probe
Before You Begin
Before attaching an adapter to the ultrasound probe, ensure that you select the correct adapter for
your probe.

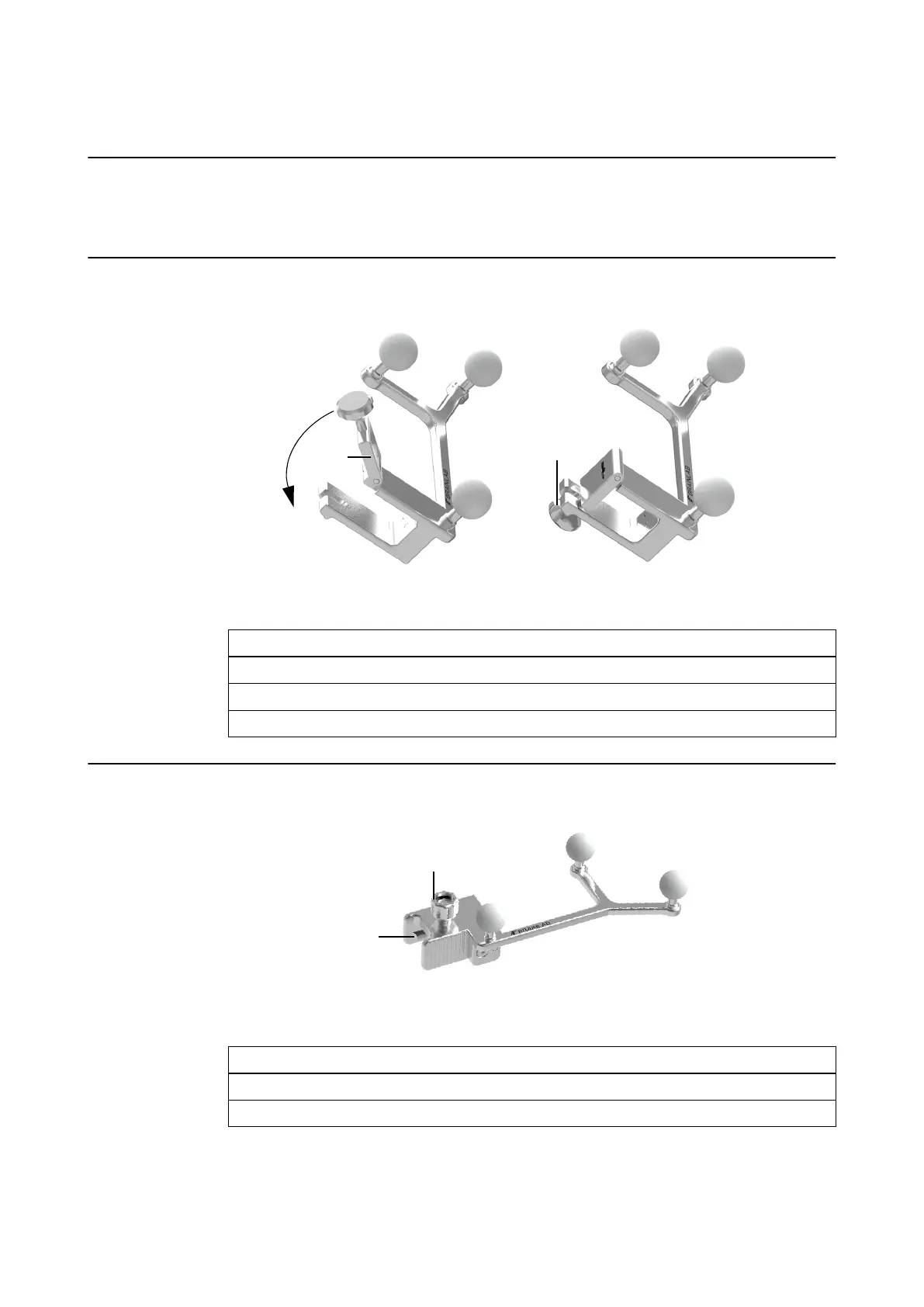

How to Attach Standard Fit Adapters to the Probe using a Latch Lock
Figure 48
Step
1. Place the Ultrasound Adapter onto the ultrasound probe.
2. Pull the hinge ① down.
3. Tighten the screw ② to close the hinge until the adapter is securely fixed to the probe.
How to Attach Adapters with a Clamp Lock
Figure 49
Step
1. Place the Ultrasound Adapter onto the ultrasound probe.
2. Tighten the screw ① until the clamp ② fits securely onto the probe.
Attaching the Standard Fit Adapter to the Probe
90 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
