9.6.1 Connection to Curve 1.1 and Above
How to Connect
Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.

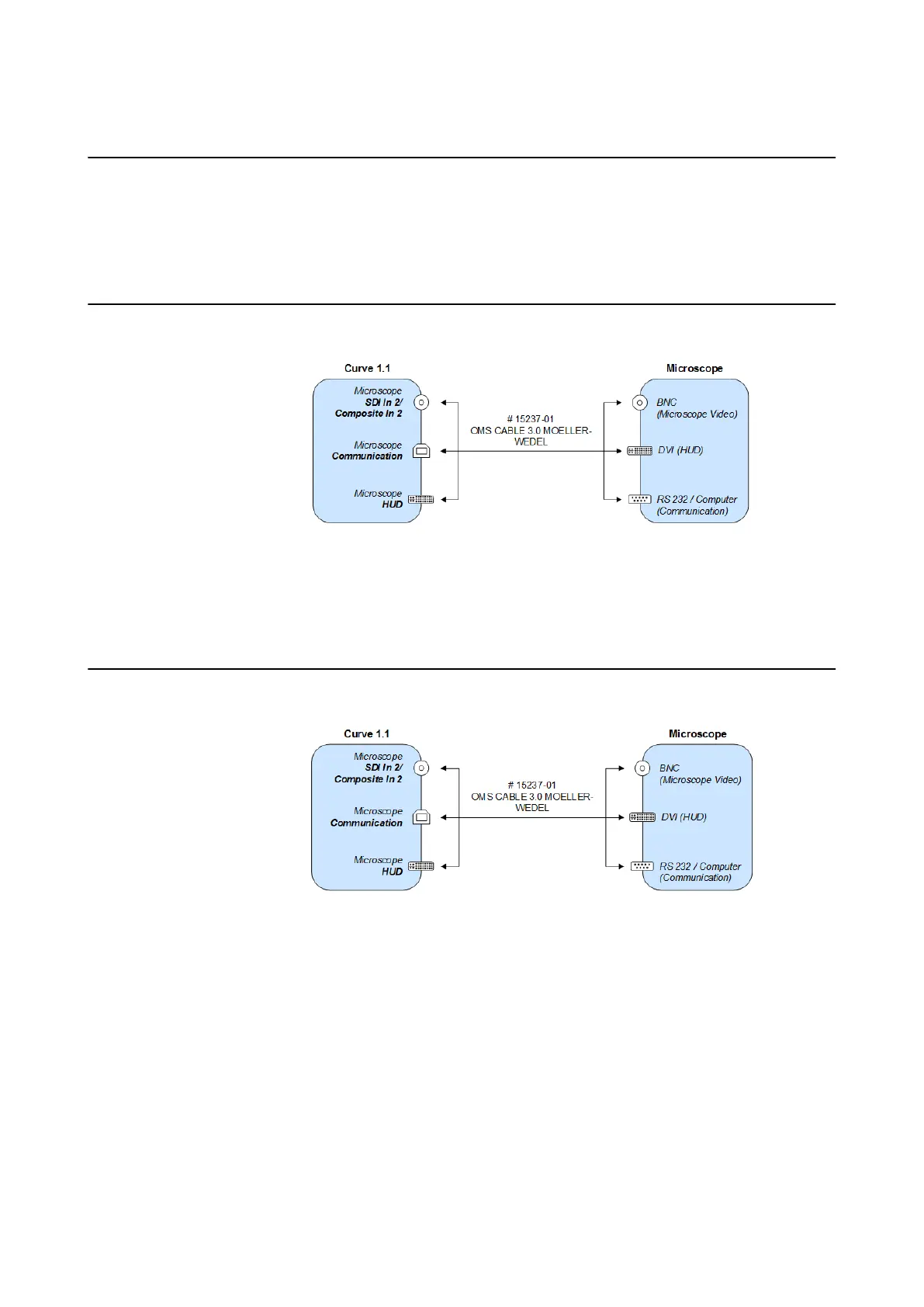

Haag-Streit Hi-R 700
Figure 90
NOTE: HUD is not available for Haag-Streit Hi-R 700.
NOTE: It is recommended to use an HD-SDI connection if available.
Haag-Streit Hi-R 1000
Figure 91
NOTE: It is recommended to use an HD-SDI connection if available.
Connection to Curve 1.1 and Above
124 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
