6.2 Instrument Adapter Clamps for Rectangular/
Cylindrical Instruments
Introduction
Two instrument adapter clamps are available for use with cylindrical or rectangular instruments.
Instrument Adapter Clamps

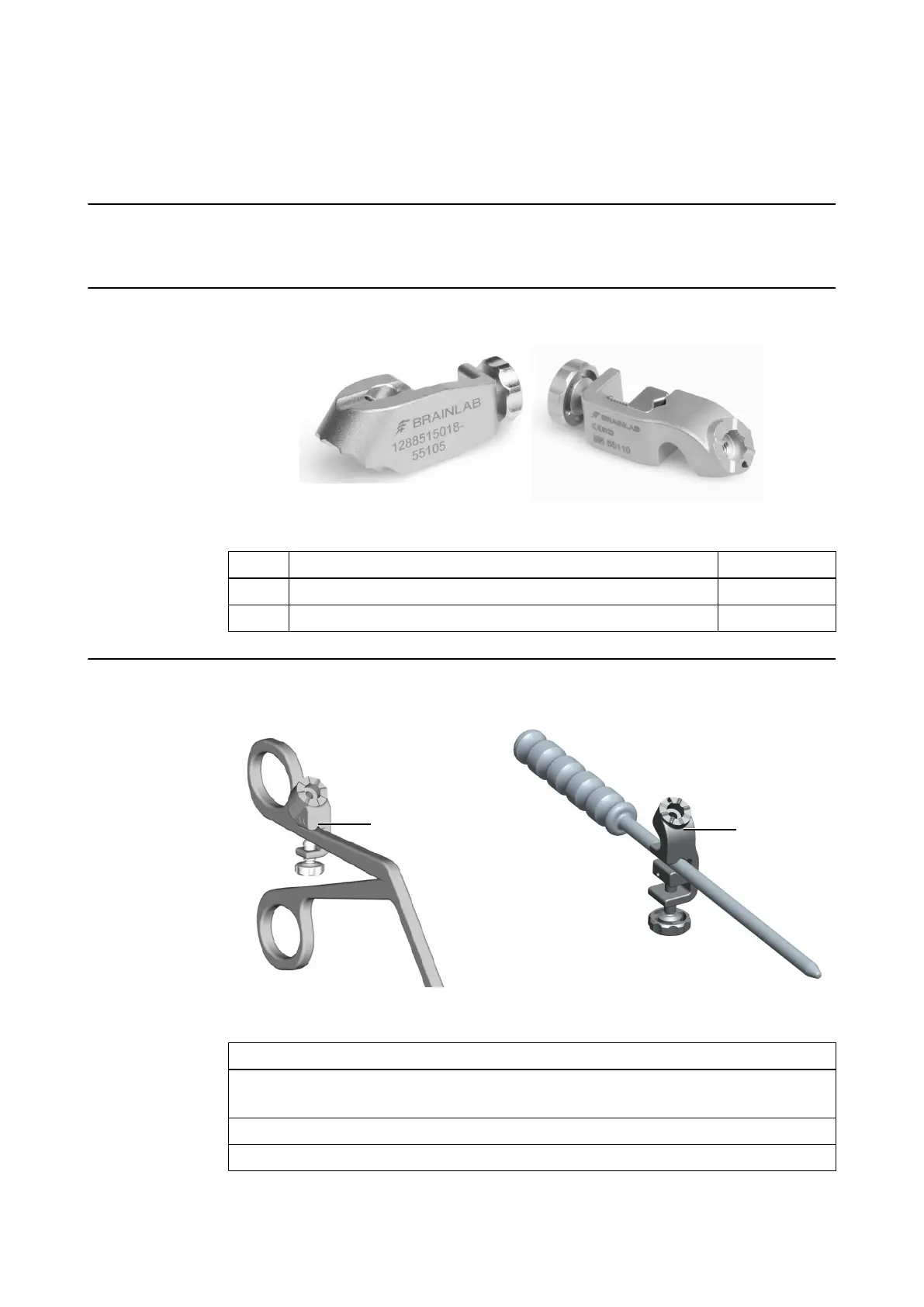

Figure 41
No. Product Article No.
①
Instrument Adapter Clamp for Blakesley/Rectangular Instruments 55105
②
Instrument Adapter Clamp for Cylindrical Instruments 55110
How to Attach the Clamp
Figure 42
Step
1. For rectangular instruments, attach the adapter ① to the rear handle of the forceps.
For cylindrical instruments, insert the cylindrical instrument into the adapter ②.
2. Make sure that the clamp notch matches the instrument handle.
3. Attach the relevant Instrument Adapter Array to the adapter.
INSTRUMENT ADAPTERS
