7 ULTRASOUND
7.1 Ultrasound Adapters
General Information
Ultrasound Adapters allow you to adapt the ultrasound probes to be compatible with Brainlab
navigation software and systems. The adapters are available with various lock mechanisms to fit
specified probes. Depending on your probe, standard fit or unique fit adapters are available.
Standard Fit Adapters
① ② ③ ④ ⑤

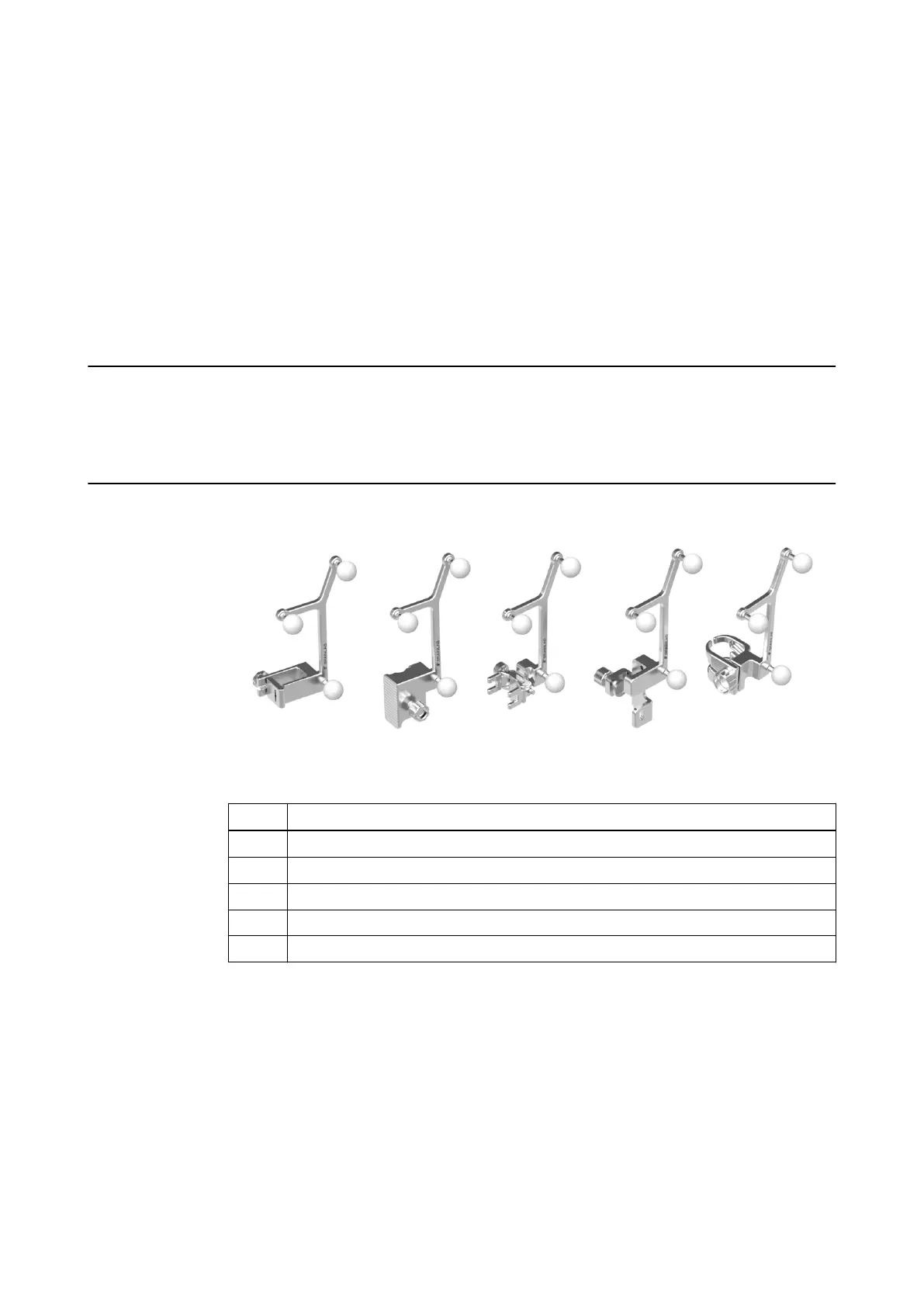

Figure 43
No. Adapter (Examples)
①
Adapter with latch lock
②
Adapter with clamp lock
③
Adapter with jaw lock
④
Adapter with vise lock
⑤
Adapter with ring lock
NOTE: The above are examples of different adapter types. Each adapter is designed for use with
specific probe types. Depending on your probe, the exact adapter design may vary.
ULTRASOUND
Instrument User Guide Rev. 2.3 Cranial/ENT Optical 85
