9.6 Haag-Streit Microscopes
How to Connect
Connect the supplied cables between the microscope ports and the corresponding ports on the
system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve 1.0 to the base of the system with the
Velcro straps provided. This strap fits through the hole located on the foot of the system.

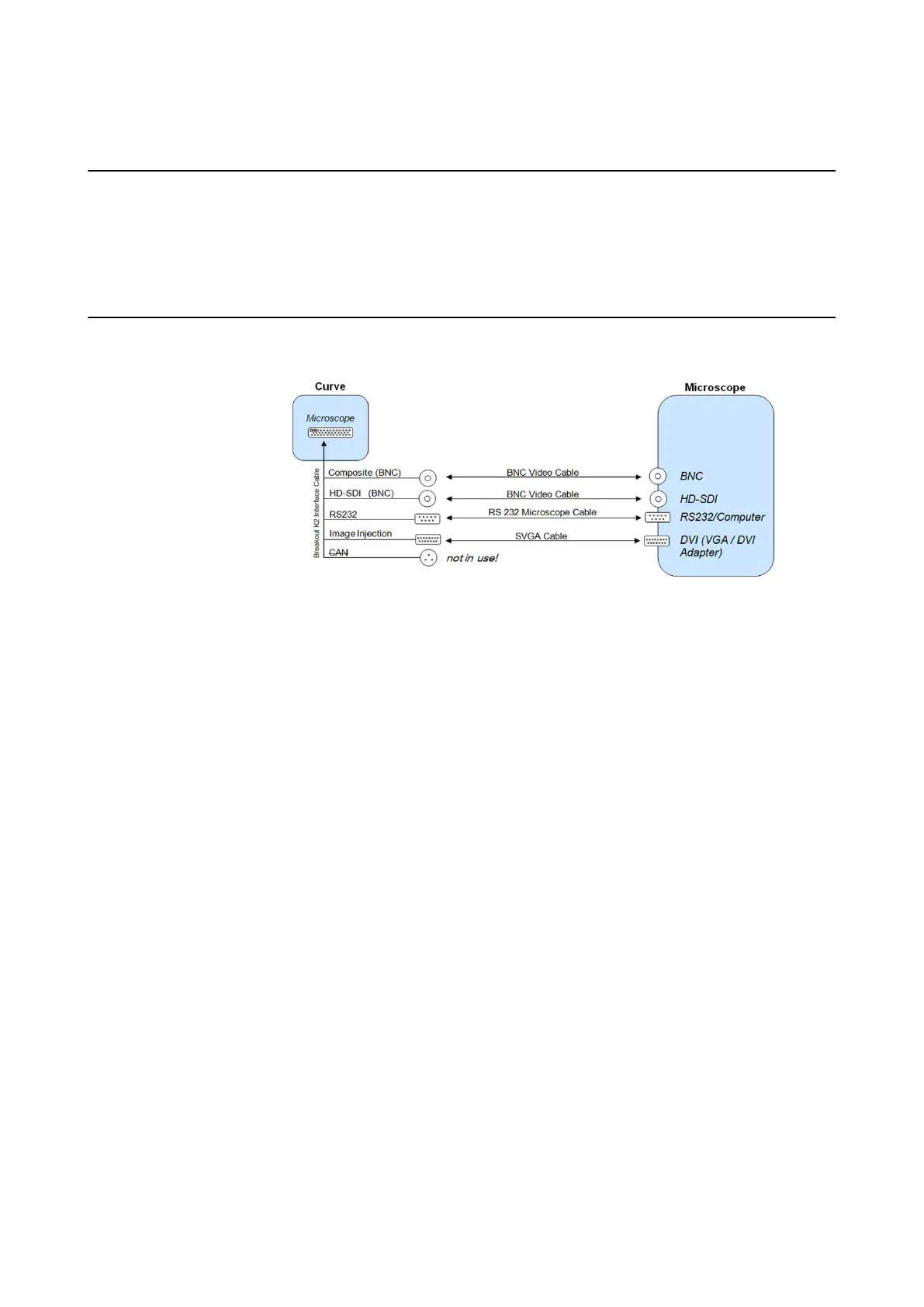

Haag-Streit Hi-R 1000/Hi-R 700
Figure 89
NOTE: Image injection is not available for Haag-Streit Hi-R 700.
NOTE: It is recommended to use an HD-SDI connection if available.
MICROSCOPES
Instrument User Guide Rev. 2.3 Cranial/ENT Optical 123
