6.1.1 Instrument Adapter Accessory
Introduction
If multiple instruments are used for navigation, the Instrument Adapter Offset-Link 45° 20 mm
provides an additional offset between a clamp and the Instrument Adapter Array to increase the
movement space.
The offset-link can attach any array to a clamp, and the orientation of the array can be adjusted at
45° angles.

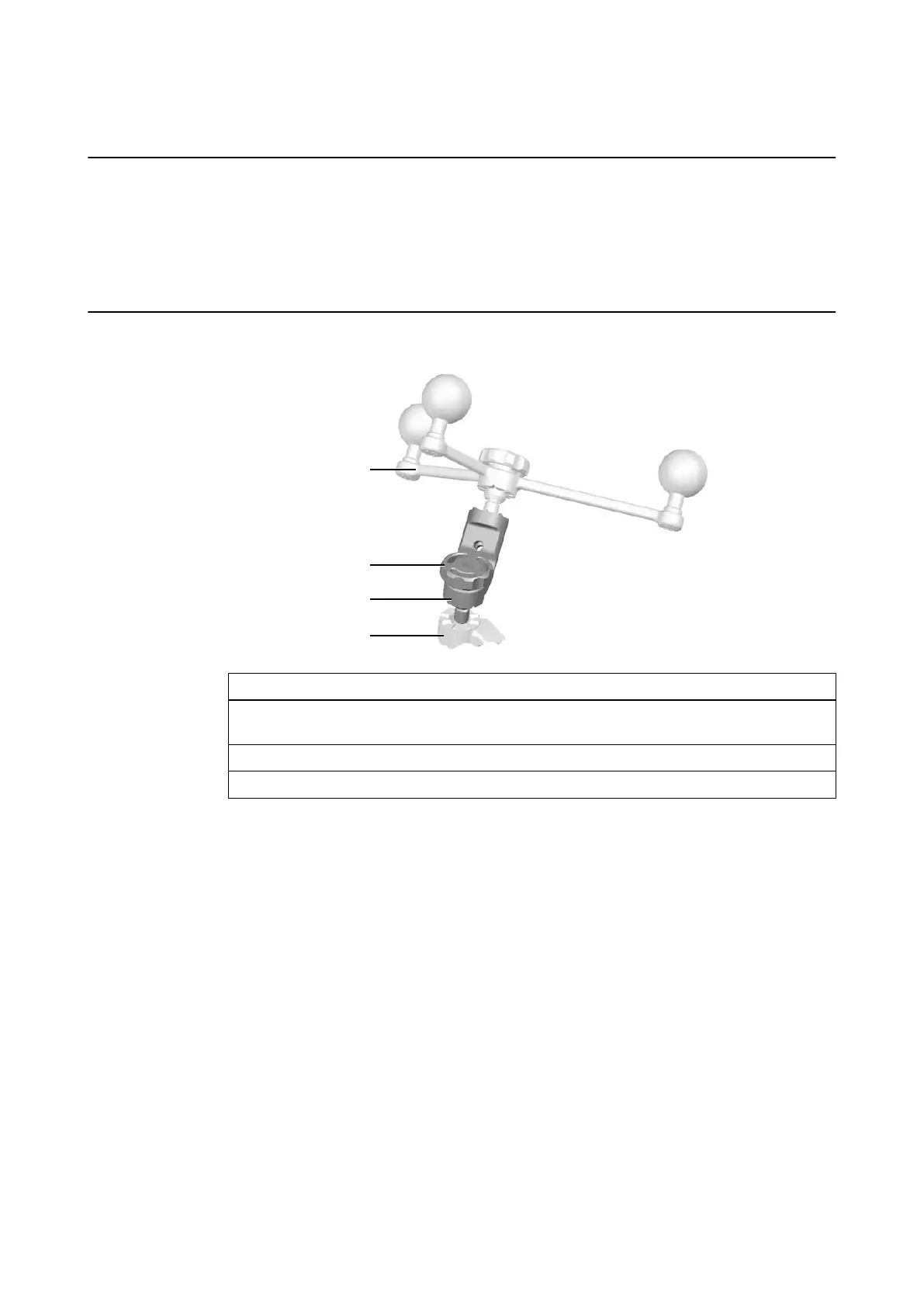

How to Attach the Adapter Offset
Step
1. Fit the Instrument Adapter Offset-Link 45° 20 mm base ② onto an Instrument Adapt-
er Clamp ① and align the teeth on both components.
2. Tighten the offset-link screw ③ to secure the it onto the adapter clamp.
3. Attach the array ④ to the offset-link.
Instrument Adapter Accessory
82 Instrument User Guide Rev. 2.3 Cranial/ENT Optical
