9.8.5 Connection to VectorVision sky
How to Connect

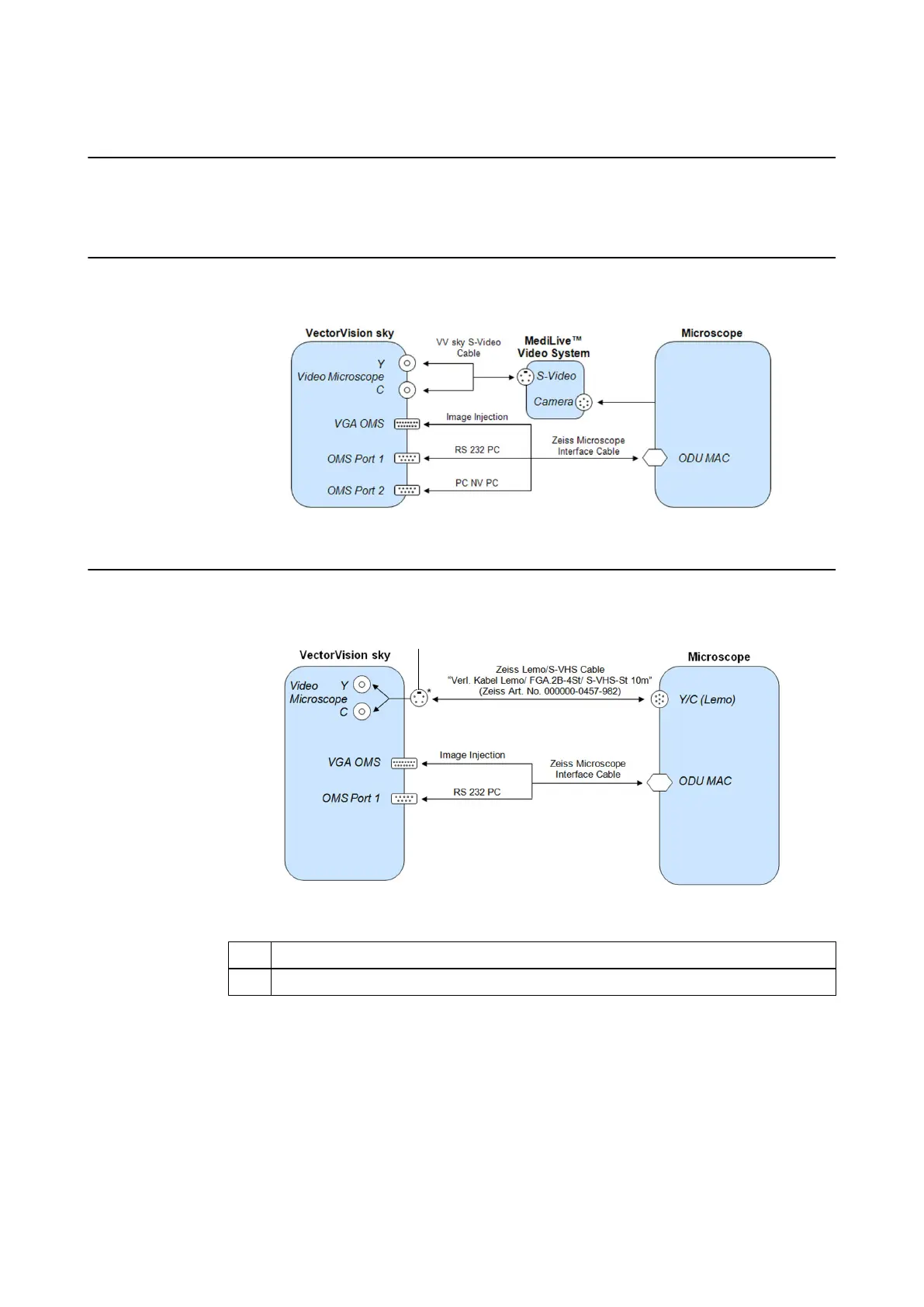

Connect the supplied cables between the microscope ports and the corresponding ports on the
VectorVision sky system according to the following diagrams.
Zeiss OPMI Neuro CRT/MultiVision
Figure 120
Zeiss OPMI Pentero/Pentero C/PENTERO 800/PENTERO 900/VARIO 700
Figure 121
No. Component
①
Brainlab adapter cable CBLSVHS F> 2xBNC M 0.2M UL EXTRON26-541-0 (19190-73)
NOTE: Image injection is not available for OPMI VARIO 700.
MICROSCOPES
Instrument User Guide Rev. 2.3 Cranial/ENT Optical 143
