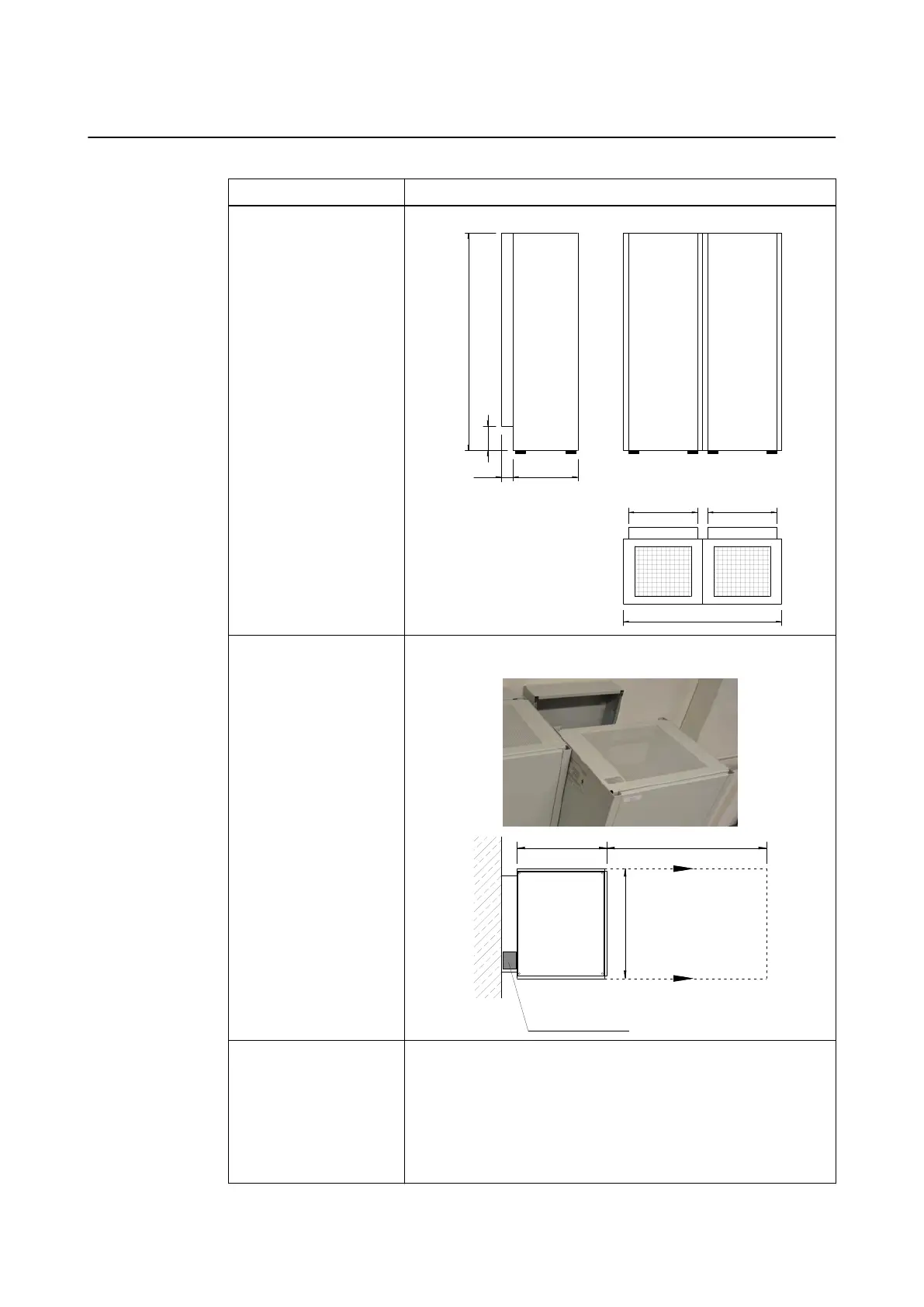

X-Ray Generator Cabinet Specifications
Component Description
Dimensions
550 mm x 550 mm x 1510 mm (each cabinet)
1100mm
480mm 480mm
450mm
1510mm
170mm
80mm
Servicing area and cable
access
For service purposes the cabinet is pulled to the front. Keep free a
servicing area of 800 mm.
cable access from top or
bottom side of cabinet
(left / right optional)
450mm
approx. 800mm
550mm
Weight
(including wheels)
• Dual generator without pre-transformer: 320 kg
•
Dual generator with pre-transformer 208 V - 400 V
: 390 kg
• Dual generator with pre-transformer 420/440/480 V - 400 V: 370
kg
• Dual generator with pre-transformer Delta 200/210/220/208 V -
star 400 V: 460 kg
• Single cabinet without pre-transformer: 160 kg
Dual X-Ray Generator Cabinets HFE 601
28 Site Planning Manual Rev. 1.0
