Component Description

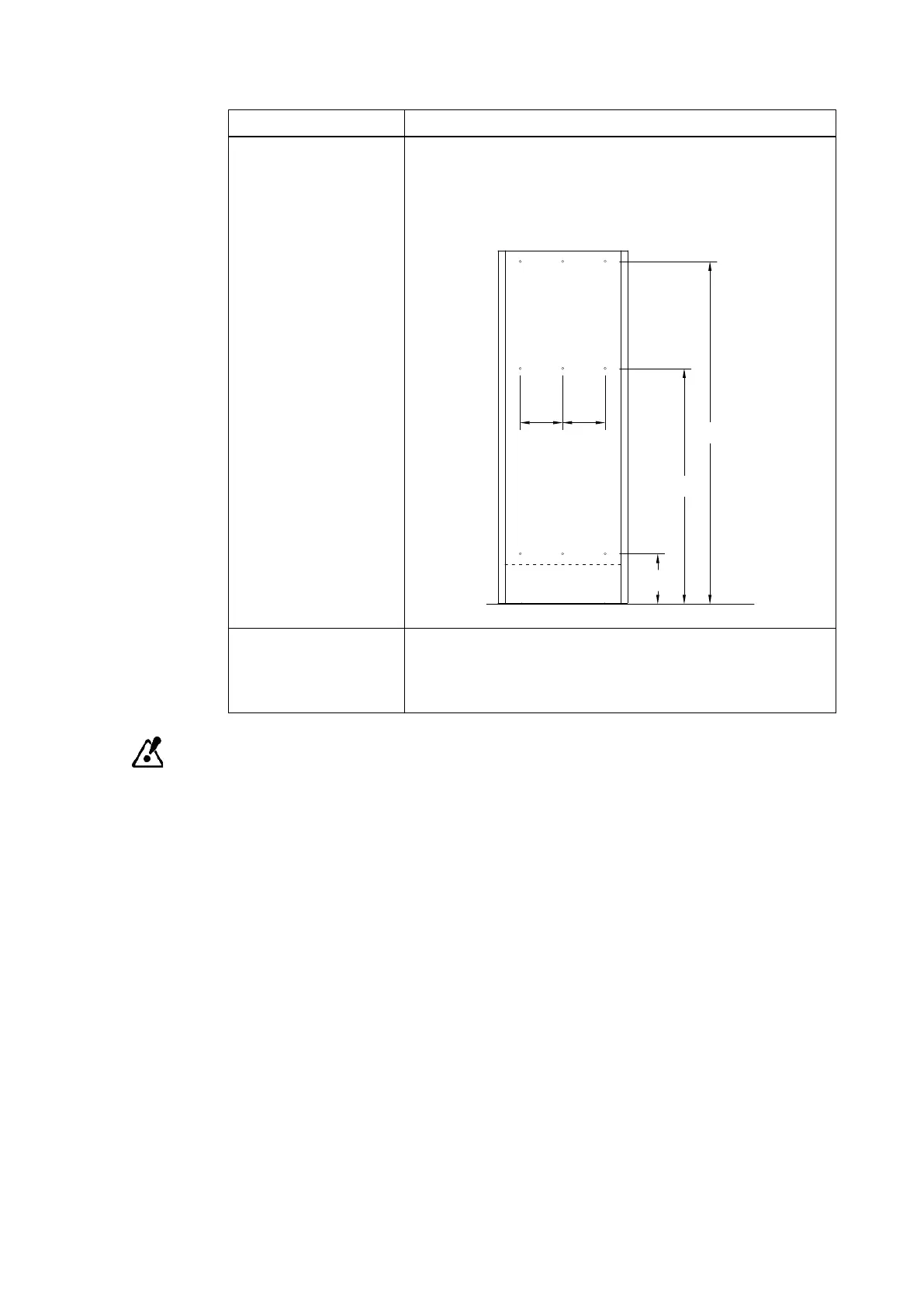

Wall fixation of rear panel
Fix the rear panel of each X-ray generator cabinet to the wall ac-
cording to the drilling pattern. Each rear panel weighs a maximum
of 25 kg, depending on the configuration.
Use anchors according to wall conditions and local regulations (not
provided by Brainlab).
214mm
1000mm
1454mm
180mm
180mm
Location
When selecting the distance between the two cabinets, consider the
length of the cable connecting the two cabinets:
•
Standard: 5 m
•
Optional: 20 m
Do not place the cabinets in the primary beam of the linac.
SITE SPECIFICATIONS
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x 29
