Config-
uration
a I1 I2 I = I1 + I2 Bars Ropes Rope Ceil-
ing Angles
M
250 - 450
mm
a - 170 mm n/a
a - 170
mm
1 4 4
L
450 - 2170
mm
(a - 170
mm)/2
(a - 170
mm)/2
a - 170
mm
2 4 4
XL > 2170 mm 1000 mm 1000 mm 2000 mm 2 4 4
Installation Instructions for Different Configurations
Configura-
tion
Instructions

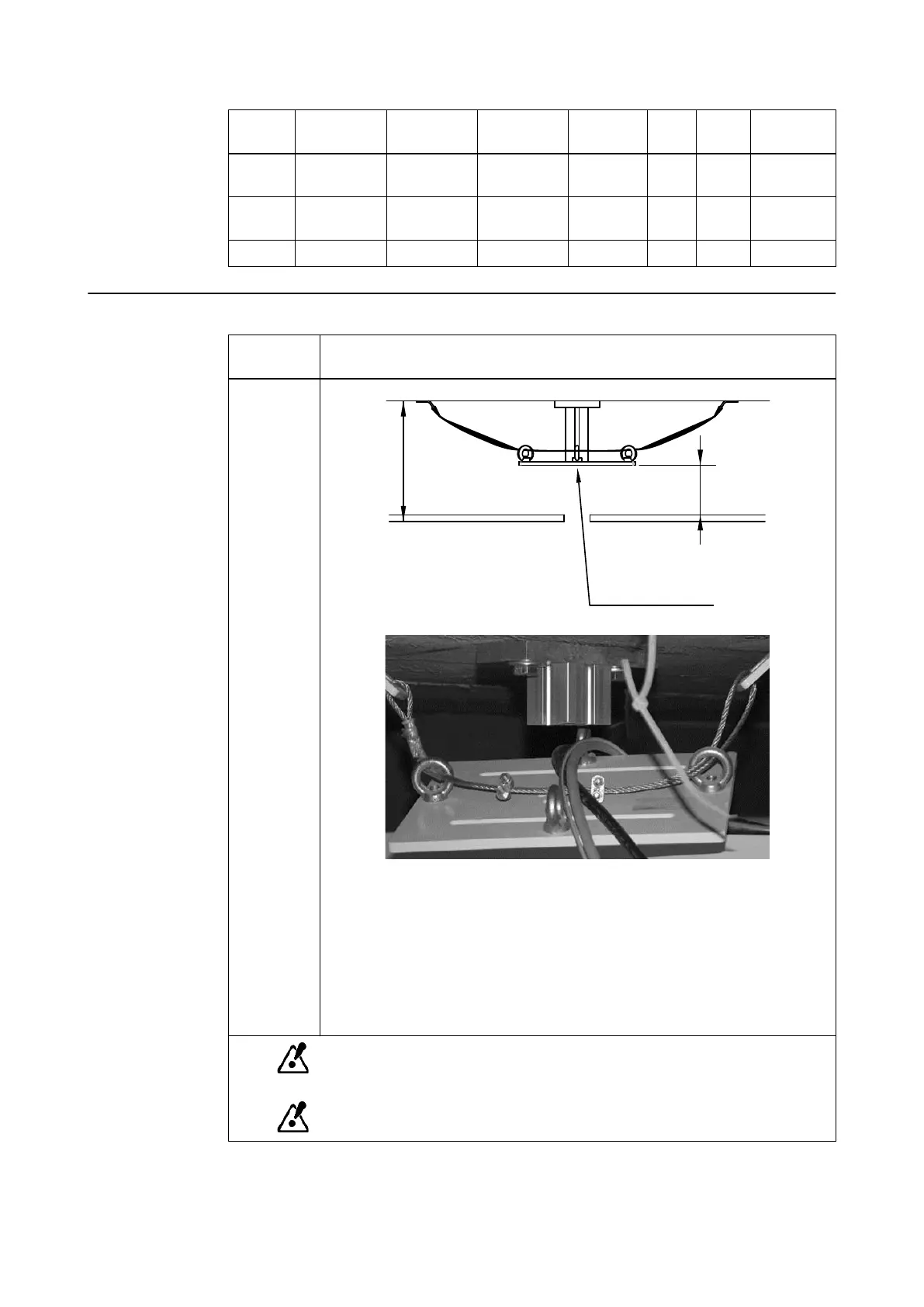

XS and S
concrete ceiling
suspended ceiling
l1
150mm
20 Nm (4xM8)
a
• Only use the upper vertical bar.
• Cut the bar as straight as possible.
•
Cut four M8 threads into the bar and mount the interface plate.
• Tighten the screws with the specified torque.
• It is possible to leave out the tension ropes. However, you must install ropes on
either side as additional mechanical protection.
NOTE: Inform Brainlab if a is shorter than 150 mm because the construction
could be visible.
Do not use rope tighteners or apply tension to the safety rope.
Fix the rope loop with at least three rope clamps.
Ceiling Mount Installation
